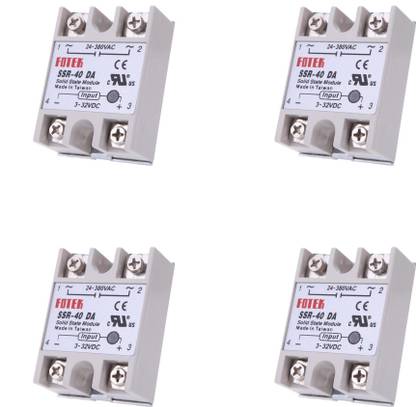

Flyrobo (4 pc) SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC - - Electronic Components Electronic Hobby Kit

Length: 62.5MM Width: 45MM Input Voltage: 3-32VDC Height : 24MM Operating Temperature Range: -20°C to +85°C Model: SSR-40DA Output Voltage: 24-380VAC Rated Current: 40A SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC is a solid-state relay (SSR) that allows you to control high-current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays. The plastic protective cover makes it be a safer relay module. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out. This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals. Features: High Reliability Long Service Life Reduced electromagnetic interference Compact size designed to offer users maximum simplicity. Package Includes: 1 x SSR-40DA Solid State Relay Module
