Flyrobo (6 pc) 12Bit WS2812 5050 RGB LED Built-in Full Color Driving Lig - Electronic Components Electronic Hobby Kit

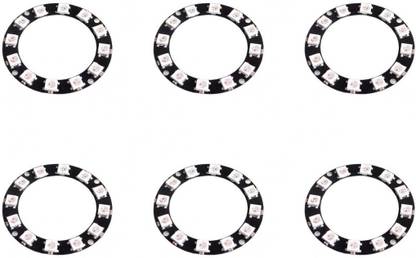

Color: RGB IC Chip: WS2812B Supply Voltage: 5 V No of Light: 12 This is the 12 LED ring, a small chainable 85mm outer diameter board equipped with 5050 WS2812 RGB LEDs. The WS2812s are each addressable. The driver chip is located inside the LED. Each Stick has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and requires 5V. Every ring is equipped with a single data line with a very timing-specific protocol requiring a real-time microcontroller with an 8MHz or faster processor such as an AVR, Programming Board , PIC, embed, etc. There are solder pads on the back for connecting wires or breadboard pins and two mounting holes for securing this board to many different surfaces. Specifications: IC Chip: WS2812B Supply Voltage: 5(V) Color: RGB No of Light: 12 Features : The control circuit and the LED share the only power source. The control circuit and RGB chip are integrated into a package of 5050 components, form a complete control of pixel points. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate. Built-in electric reset circuit and power lost reset circuit. Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s. Cascading port transmission signal by a single line. Any two points the distance more than 5m transmission signal without any increase circuit. When the refresh rate is 30fps( frames per second), the cascade number is not less than 1024 points. Send data at speeds of 800Kbps. The color of the light was highly consistent Full-color module, Full-color soft lights a lamp strip. LED decorative lighting, Indoor/outdoor LED video irregular screen. Package Includes : 1 x 12 Bit ws2812 5050 RGB LED Small Ring With Fashion Light
