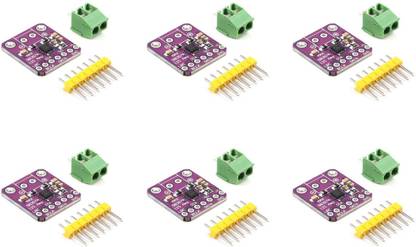

Flyrobo (6 pc) MAX98357 I2S 3W CLASS D Audio Amplifier Module - - Electronic Components Electronic Hobby Kit

Length: 19.4 mm Width: 19 mm Operating Voltage: 2.5V to 5.5V Height : 3 mm Model: MAX98357 MAX98357 I2S 3W CLASS D Audio Amplifier Module accepts digital audio through the I2S interface and converts it to an analog output signal and amplifies it to allow direct speaker connection. It combines an I2S D/A converter with an audio amplifier on one board. MAX98357 I2S 3W CLASS D Audio Amplifier Module is suitable for Programming Board Pi. By default, the stereo signals (L + R) are mixed to form an output signal. The behavior can be changed using a resistor so that only L or R is output. Features: Model: MAX98357 3.2W Output Power at 4Ω Five pin-selectable gains: 3dB, 6dB, 9dB, 12dB, 15dB click-and-pop suppression Thermal shutdown protection Supports Left, Right, or (Left/2 + Right/2) Output Package Includes: 1 x MAX98357 I2S 3W CLASS D Audio Amplifier Module
