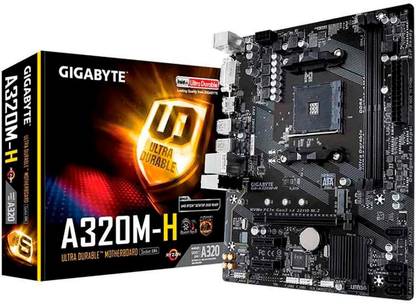

GIGABYTE GA-A320M-H Ultra Durable AMD AM4 Motherboard with Hybrid Digital VRM Solution AM4Socket Micro-ATX AMD 320 Chipset DDR4 Motherboard for Desktop

GIGABYTE GA-A320M-H Ultra Durable AMD AM4 Motherboard with Hybrid Digital VRM Solution AM4Socket Micro-ATX AMD 320 Chipset DDR4 Motherboard for Desktop

Price: Not Available
Currently Unavailable
Warranty
Brand Warranty
Highlights
  • Suitable For Desktop
  • AMD 320
  • Data Rate DDR4
  • Maximum RAM Capacity 64 GB
  • Form Factor: Micro-ATX
Description
GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen 3000 Processors and are backwards compatible with AMD Ryzen 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.
Read More
Specifications
In The Box
Sales Package
  • 1 x Motherboard, 2 x SATA Cables, 1 x User Manual, 1 x I/O Shield, 1 x Driver CD
General
Brand
  • GIGABYTE
Model ID
  • GA-A320M-H Ultra Durable AMD AM4 Motherboard with Hybrid Digital VRM Solution
Essentials
Form Factor
  • Micro-ATX
Socket Type
  • AM4
Chipset
  • AMD 320
Chipset Manufacturer
  • AMD
Memory
Number of Memory Slots
  • 3 Slots
Memory Configuration
  • 64 GB DDR4 Dual channel memory architecture DIMM
Memory Frequency
  • Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz MHz
ECC Support
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Storage
SATA 6 Gb/s
  • 4 x SATA 6Gb/s
RAID Configurations
  • Support for RAID 0, RAID 1, and RAID 10
Graphics
Integrated Graphics card
  • Onboard Graphics
External Graphics Card Support
  • Yes
Audio
Audio Codec
  • Realtek® audio codec
Audio Channels
  • 7.1
Audio Features
  • High Definition Audio, * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software., Support for S/PDIF Out
Connectivity
Ethernet Card
  • Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
PCI Slots
  • 3
PCIe x1 Slots, Generation
  • 2
PCIe x16 Slots, Generation
  • 1
Internal I/o Headers
SATA 6 Gb/s Headers
  • 4
USB 2.0 Headers
  • 2
USB 3.0 Headers
  • 1
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors)
Fan Headers
  • 1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers
  • 1
Back Panel Ports
USB 2.0 Ports, Controller
  • 6
USB 3.0 Ports, Controller
  • 2
HDMI Ports
  • 1
DVI Ports
  • 1
Audio I/O Channels
  • 3
Optical S/PDIF Ports and S/PDIF Out ports
  • 1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 2
General Features
Hardware Monitoring
  • Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
Support CDs
  • Drivers
Bundled Software
  • Norton® Internet Security (OEM version), cFosSpeed
OS Support
  • Support for Windows 10 64-bit, Support for Windows 7 64-bit, * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU., * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
BIOS
  • 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Advanced Technologies
  • Support for Q-Flash
Dimensions
Dimensions
  • 19.5 x 6 x 24.4 mm
Weight
  • 0.65 g
Warranty
Warranty Summary
  • Brand Warranty
Covered in Warranty
  • Manufacturer Defect
Not Covered in Warranty
  • Physical Damage and Burnt
Warranty Service Type
  • Bring the Product at a certain Service Center
