    GIGABYTE GA-F2A68HM-S1 FM2+, FM2Socket Micro-ATX AMD A55 Chipset DDR3 Motherboard for Desktop
    Freedom Sale ends in03 hrs : 49 mins : 34 secs

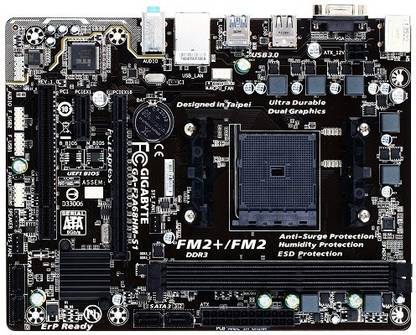

    GIGABYTE GA-F2A68HM-S1 FM2+, FM2Socket Micro-ATX AMD A55 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    1 YEAR DIRECT MANUFACTURER
    Highlights
    • Suitable For Desktop
    • AMD A55
    • Data Rate DDR3
    • Maximum RAM Capacity 64
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • GIGABYTE MOTHERBOARD, SATA CABLE, CASING PLATE, DRIVER CD, MANUAL
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-F2A68HM-S1
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • FM2+, FM2
    Compatible Processors
    • A SERIES, SOCKET FM2+ AMD, AMD A series processors, AMD Athlon™ series processors
    Chipset
    • AMD A55, AMD A68H CHIPSET
    Chipset Manufacturer
    • AMD
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 64 DDR3 DUAL CHANNEL DIMM
    Memory Frequency
    • DDR3/DDR3L 2400(OC)/2133/1866/1600/1333 MHz
    Buffered Memory
    • No
    Storage
    SATA 6 Gb/s
    • 4, AMD A68H
    Graphics
    Integrated Graphics card
    • SHARED MEMORY OF 2GB
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek ALC887 codec HD
    Audio Channels
    • 8
    Audio Features
    • 2/4/5.1/7.1-channel
    Connectivity
    Ethernet Controller
    • Realtek GbE LAN
    Ethernet Card
    • Realtek GbE LAN chip (10/100/1000 Mbit)
    Ethernet Features
    • HI SPEED
    Wireless and Bluetooth
    • N/A and N/A
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 1
    PCIe x2 Slots, Generation
    • 0
    PCIe x4 Slots, Generation
    • 0
    PCIe x8 Slots, Generation
    • 0
    PCIe x16 Slots, Generation
    • 1
    Mini PCIe Slots
    • 0
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 0
    ATX Power Connectors
    • 1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Other Connectors
    • N/A
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    HDMI Ports
    • 0
    IEEE 1394a Ports
    • 0
    DVI Ports
    • 0
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Hardware Monitoring
    • System voltage detection, APU/System temperature detection, APU/System fan speed detection, APU overheating warning, APU/System fan fail warning, APU/System fan speed control, Whether the fan speed control function is supported will depend on the cooler you install, KINDLY REFER TO THE PRODUCT SITE
    BIOS
    • 1 x 64 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Advanced Technologies
    • SUPPORT SOLID STATE DRIVE (SSD), SUPPORT MECHANICAL HARD DRIVE (MHD), Support for ON/OFF Charge
    Dimensions
    Weight
    • 0.58 g
    Warranty
    Warranty Summary
    • 1 YEAR DIRECT MANUFACTURER
    Covered in Warranty
    • TECHNICAL PROBLEMS
    Not Covered in Warranty
    • PHYSICAL DAMAGED & BURNING, SHORT CIRCIT, DENTS, CUTS, BEND
    Warranty Service Type
    • CARRY IN
    Questions and Answers
    Q:Can i use Intel i3 processor .?
    A:NO, THIS MOTHERBOARD BUILD FOR AMD PROCESSOR'S
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:is this motherboard compatible with amd fx 6300 pfocessor
    A:NO, THIS IS FM2+ SOCKET MOTHERBOARD, YOUR PROCESSOR REQUIRE AM3+ SOCKET MOTHERBOARD.
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:can i use intel Pentium e5500 processor
    A:THIS IS BUILD FOR AMD PROCESSOR
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:lam update GPU
    A:YOU CAN BUY AMD A6 7400K PROCESSOR, WITH INTEGRATED RADEON R5 GRAPHICS AND ALSO ADDITIONAL GRAPHICS CARD ADDED VIA PCIE SLOT
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:cab it support 2.0 pci
    A:The PCI Express x1 slot conforms to PCI Express 2.0 standard.
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:is this motherboard compatible with amd a8 7600 chipset?
    A:YES
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:can it support amd a6 7400k processor
    A:YES. 100% SUPPORT
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:can we use amd a10
    A:NO
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:can i connet i3 processor in this mother board??
    A:ONLY AMD PROCESSOR
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:can i use amd anthlon 2
    A:NO
    DIXICOMPUTER
    Flipkart Seller
    0
    0
    Report Abuse
