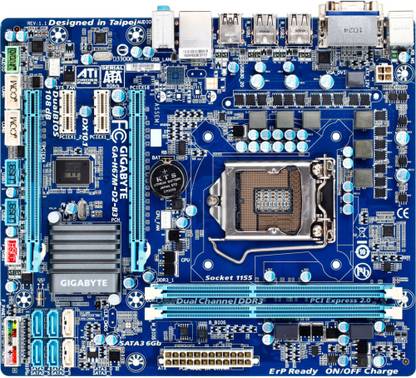

    GIGABYTE GA-H67M-D2-B3 LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

    GIGABYTE GA-H67M-D2-B3 LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Highlights
    • Suitable For Desktop
    • Intel H67
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 8
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Hardware Monitoring
    • System Voltage Detection, CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU Overheating Warning, CPU/System Fan Fail Warning, CPU/System Fan Speed Control
    Bundled Software
    • Norton Internet Security (OEM version)
    OS Support
    • Windows XP and Above
    BIOS
    • 2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Features
    • I/O Controller: iTE IT8728 chip
    Advanced Technologies
    • Hybrid EFI Technology, On/Off Charge Technology
    Advanced Features
    • Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for Dynamic Energy Saver, Support for Smart 6, Support for Auto Green, Support for eXtreme Hard Drive (X.H.D), Support for ON/OFF Charge, Support for Cloud OC, Support for 3TB+ Unlock, Support for TouchBIOS, Support for Q-Share
    Warranty
    Domestic Term
    • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
    Covered in Warranty
    • Manufacturing Defects are covered
    Warranty Service Type
    • Carry In
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1333 MHz, 1066 MHz, 800 MHz
    ECC Support
    • Non-ECC
    Limitations
    • Some Intel Core Processors Require a Graphic Card
    Dimensions
    Dimensions
    • 210 x 244 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Core i7 Processors, Intel Core i5 Processors, Intel Core i3 Processors, Intel Pentium Processors, Intel Celeron Processors
    Chipset
    • Intel H67
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, AMD CrossFireX Technology
    Storage
    RAID Configurations
    • 0, 1, 5, 10
    Expansion Slots
    PCIe x1 Slots, Generation
    • 2, 2
    PCIe x16 Slots, Generation
    • 2, 2
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-H67M-D2-B3
    Designed For
    • Desktop
    Key Features
    • Micro-ATX Form Factor, LGA 1155 Socket Type, Intel H67 Express, RAID Controller: Intel H67 Express Chipset, 2 Memory Slots, Maximum 16 GB DDR3, Dual Channel DIMM Memory
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • 10/100/1000 Mbit
    Audio
    Audio Codec
    • Realtek ALC889
    Audio Channels
    • 7.1
    Audio Features
    • High Definition Audio
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    SATA 6 Gb/s Headers
    • 2
    USB 2.0 Headers
    • 3
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Front Panel Audio Header, 2 x Serial Port Header, 1 x Clearing CMOS Jumper
