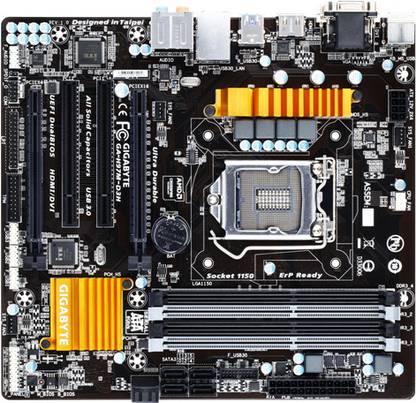

    GIGABYTE GA-H97M-D3H LGA 1150Socket Micro-ATX Intel H97 Express Chipset DDR3 Motherboard

    GIGABYTE GA-H97M-D3H LGA 1150Socket Micro-ATX Intel H97 Express Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    3 Years Gigabyte India Warranty and Free Transit Insurance
    Highlights
    • Intel H97 Express
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 2
    USB 3.0 Ports, Controller
    • 4
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 6
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    In The Box
    Sales Package
    • Motherboard, SATA Cables, Rear I/O Panel Shield, SATA Cable and Supporting CD Software
    General Features
    Hardware Monitoring
    • System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU / System Overheating Warning, CPU / System Fan Fail Warning, CPU / System Fan Speed Control
    Bundled Software
    • Norton Internet Security (OEM Version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, Intel Small Business Advantage
    OS Support
    • Windows: 7, 8, 8.1
    BIOS
    • 2 x 64 Mbit Flash, Use of Licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Features
    • Smart Recovery 2, Smart, Dimensions: 244 x 225 mm, USB Blocker, Fast Boot, On / Off Charge, Support for Xpress Install, Support for Smart Switch, System Information Viewer, EasyTune, EZ Setup, I/O Controller: iTE I/O Controller Chip, TimeLock, Support for Q-Flash, Support for APP Center
    Advanced Features
    • Support for Extreme Memory Profile (XMP) Memory Modules
    Warranty
    Warranty Summary
    • 3 Years Gigabyte India Warranty and Free Transit Insurance
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1150
    Compatible Processors
    • Intel Pentium Processors, Intel Core i3 Processors, Intel Celeron Processors, Intel Core i7 Processors, Intel Core i5 Processors
    Chipset
    • Intel H97 Express
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    Multi GPU Support
    • Yes, Support for 2-Way AMD CrossFire Technology
    Storage
    SATA 6 Gb/s
    • Intel H97 Express
    RAID Controller
    • Intel H97 Express
    RAID Configurations
    • 0, 1, 5, 10
    Expansion Slots
    PCI Slots
    • 2
    PCIe x16 Slots, Generation
    • 1, 2
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-H97M-D3H
    Color
    • Black
    Key Features
    • Intel H97 Express Chipset, LGA 1150 Socket Type, Maximum 32 GB DDR3, 4 Memory Slots, Micro-ATX Form Factor, Dual Channel Memory
    Connectivity
    Ethernet Controller
    • Realtek GbE
    Ethernet Features
    • 10/100/1000 Mbit
    Audio
    Audio Codec
    • Realtek ALC892
    Audio Channels
    • 7.1
    Audio Features
    • High Definition Audio, Support for S/PDIF Out
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 3
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 3 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Parallel Port Header, 1 x Clear CMOS Jumper, 1 x Serial Port Header, 1 x Front Panel Audio Header
