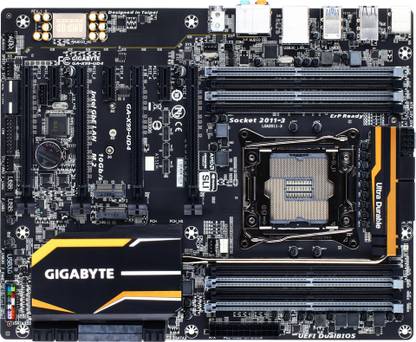

GIGABYTE GA-X99-UD4 LGA 2011Socket ATX Intel X99 Express Chipset DDR4 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Standard Gigabyte India Warranty

Highlights

Specifications

In The Box

Sales Package

General

Brand	GIGABYTE
Model ID	GA-X99-UD4

Essentials

Memory

Storage

Graphics

Multi GPU Support

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	High Definition Audio, Support for S/PDIF Out

Connectivity

Ethernet Controller	Intel GbE
Ethernet Features	10/100/1000 Mbit

Expansion Slots

PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	4, 3

Internal I/o Headers

SATA 6 Gb/s Headers	10
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Water Cooling Fan Header (CPU_OPT), 1 x PCIe Power Connector, 1 x M.2 Socket 3 Connector, 1 x M.2 Socket 1 Connector for the Wireless Communication Module (M2_WIFI), 1 x SATA Express Connector, 1 x Front Panel Audio Header, 1 x Heatsink LED Power Connector, 1 x M.2 PCIe Connector (Socket 3, M key, Type 2242/2260/2280 SATA and PCIe x2/x1 SSD Support), 1 x I/O Shield Audio LED Power Connector, 1 x Thunderbolt Add-in Card Connector, 1 x Clear CMOS Jumper

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	6
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	2 x Wi-Fi Antenna Connector Holes

General Features

Hardware Monitoring	System Voltage Detection, CPU/System/Chipset Temperature Detection, CPU/CPU OPT/System Fan Speed Detection, CPU/System/Chipset Overheating Warning, CPU/CPU OPT/System Fan Fail Warning, CPU/CPU OPT/System Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version), Intel Smart Response Technology, cFosSpeed
OS Support	8.1, 8, Window: 7
BIOS	2 x 128 Mbit Flash, Use of Licensed AMI UEFI BIOS, Support for Dual BIOS, Support for Q-Flash Plus, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features	Smart Recovery 2, System Information Viewer, Support for Smart Switch, Ambient LED, EZ Setup, Support for Q-Flash, Cloud Station, Support for Xpress Install, USB Blocker, V-Tuner, Support for APP Center - at BIOS, EasyTune, Dimensions: 305 x 244 mm, Fast Boot, ON/OFF Charge, Smart TimeLock, I/O Controller: iTE I/O Controller Chip
Advanced Features	L3 Cache Varies with CPU, Support for Extreme Memory Profile (XMP) Memory Modules, Support for RDIMM 1R x 8 Memory Modules (Operate in Non-ECC Mode)

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Standard Gigabyte India Warranty
