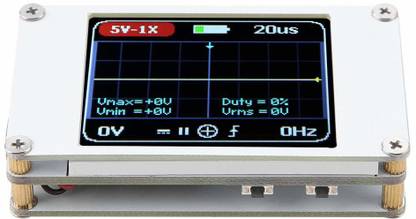

Home Trade Digital Oscilloscope DSO188. Handheld Pocket Size With 2.4" TFT LCD Screen & and BNC-Clip Cable. Digital Oscilloscope

DSO188 is a super small digital oscilloscope with 5MS/s sampling rate and 1MHz bandwidth is designed for electronic enthusiasts and circuit R & D maintenance personnel. 1MHz bandwidth can be used for an amplifier, oscillator, automatic control system, DC/DC, inverter, switching power supply and so on. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all good choices. Specifications: Analog band width: 1MHz Maximum real time sampling rate: 5MS/s Vertical sensitivity: 50 mV/div ~ 200 V/div Horizontal time base range: 100mS/div ~ 2uS/div Maximum input voltage: 40 V (1X probe), 800 V (10X probe) Storage depth: 40KB Input resistance: 1M ADC precision: 12bits Coupling mode: AC/DC Trigger mode: Auto Trigger edge: Ascending/descending edge External trigger voltage: 0 - 40 V Display: TFT color display Power supply: 250 mAh lithium battery Weight: Approx.86g/3oz
