    HouseOfCommon QUALITY 24V40A BMS Protection Board for 18650 Li-ion Lithium Battery Cell Module Electronic Components Electronic Hobby Kit
    Home
    Toys and Games
    Hobby Kits
    Electronic Kits
    HouseOfCommon Electronic Kits

    HouseOfCommon QUALITY 24V40A BMS Protection Board for 18650 Li-ion Lithium Battery Cell Module Electronic Components Electronic Hobby Kit

    HouseOfCommon QUALITY 24V40A BMS Protection Board for 18650 Li-ion Lithium Battery Cell Module Electronic Components Electronic Hobby Kit

    Be the first to Review this product
    ₹820
    ₹1,099
    25% off
    i
    Available offers
  • Bank Offer100% Cashback upto 500Rs on Axis Bank SuperMoney Rupay CC UPI transactions on super.money UPI
    T&C
  • Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter
    T&C
    • Delivery
    Check
    Enter pincode
      Delivery by30 Jun, Monday
      ?
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Fiber
    • Weight: 10
    Services
    • Cash on Delivery available
      ?
    Description

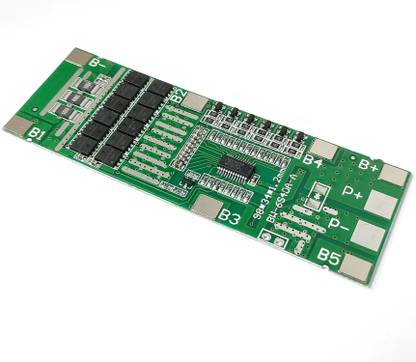

    Product Description Color: green Material: PCB Maximum discharge current: 40A Instantaneous discharge current: 70A Charging voltage: 25.5V Maximum charging current: 40A Overcharge detection voltage: 4.25±0.025V Overcharge protection delay: 1.0±0.5S Overcharge release voltage: 4.15±0.05V Battery balance detection voltage: 4.125±0.025V Battery balance release voltage: 4.125±0.05V Battery balance current: 41±5mA Overdischarge detection voltage: 2.7 ± 0.1V Overdischarge detection delay: 1.0±0.5S Overdischarge release voltage: 3.0±0.1V Overcurrent detection voltage: 100mV Overcurrent detection delay: 1±0.3S Overcurrent protection current: 75±5A Overcurrent protection release condition: disconnect load Short circuit protection condition: external load short circuit Short circuit detection delay: 250uS Short circuit protection release condition: disconnect load Main circuit conduction internal resistance: ?20m? Working current: ?40uA Temperature range: -30/+80°C
    Read More
    Specifications
    In The Box
    • PACK OF 1
    General
    brand
    • HouseOfCommon
    Model Number
    • QUALITY 24V40A BMS Protection Board for 18650 Li-ion Lithium Battery Cell Module
    Type
    • Electronic Components
    ROHS Complaint
    • Yes
    Material
    • Fiber
    Dimensions
    Width
    • 4 cm
    Height
    • 6 cm
    Weight
    • 10
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • Protection Module Cell Charging Module with Balance Function for Drill Motor, The protection board is for cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries., Support overcharge protection,overdischarge protection,overcurrent protection and short circuit protection., This protection board is suitable for 3 series 3.7V 18650 Li-ion cell.Charging connector and discharging connector are separated., Stable charging and discharging the various protection features such as precise overcharge protection,overdischarge protection,overcurrent protection and short circuit protection.
