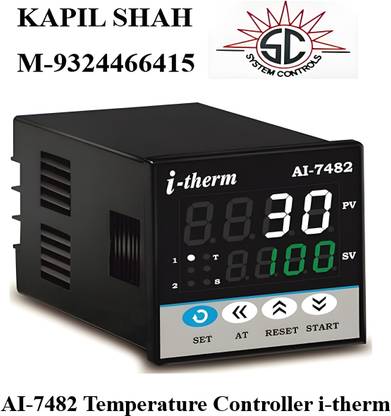

i-therm i-therm AI-7482 PID Temperature Controller With Sock Timer, Oven , Bod LED Display

i-therm i-therm AI-7482 PID Temperature Controller With Sock Timer, Oven , Bod LED Display

Share

i-therm i-therm AI-7482 PID Temperature Controller With Sock Timer, Oven , Bod LED Display

Be the first to Review this product
₹1,898
2,499
24% off
i
Warranty
1 year warranty against manufacturing defects , hardware malfunctions, etc.
Delivery
Check
Enter pincode
    Delivery by22 Jul, Tuesday
    ?
    if ordered before 3:59 AM
View Details
Services
  • 1 year warranty against manufacturing defects , hardware malfunctions, etc.
  • Cash on Delivery available
    ?
Seller
KAPILSHAH
3.3
  • 7 Days Return Policy
    ?
  • See other sellers
  • Description
    Display:- Height & Colour- 0.36'' White & 0.24'' Pure Green No. of Digits- 4 Digits Dual Row LED Indication- Output Status Input Specification:- Sensor Input- T/C: J, K, R, S, N, T, B -RTD: Pt-100 Resolution- T/C: 1°C & Pt-100: 1°C/ 0.1°C Sampling Rate- 250msec Accuracy- 0.3% FS Output: Relay- 5A @ 250 VAC/ 30VDC SSR Drive- 12 VDC @ 30mA Output 2 Function:- Alarm- Low/ High/ Band / Low Deviation/ High Deviation Soak Timer- Heater off/ Alarm/ Both General Specification:- Supply Voltage: 90 - 270 VAC/ DC (24 VDC Available on Request) Temperature And Humidity- Operating: 0-50°C -Storage: -20° to 75°C -95% RH (Non-condensing) Dimensions in mm - (H x W x D)48 x 48 x 78
    Read More
    Specifications
    In The Box
    Sales Package
    • 1 SYSTEM CONTROLS- includes wired cable and user manual
    General
    Brand
    • i-therm
    Model Number
    • i-therm AI-7482 PID Temperature Controller With Sock Timer, Oven , Bod
    Power Requirement
    • 90-270VAC
    Backlight
    • Green
    Display Technology
    • Digital LED Display technology includes high brightness, long lifespan, low power consumption, and the ability to produce vibrant colors.
    Display Type
    • LED
    Display Size
    • 3 inch
    Display Color
    • White
    Other Features
    • Features Programmable Up / Down counting Timer Range through Keyboard : 9.99 sec to 999 Hrs Two Different time range in Cyclic Mode Configurable at Power ON (To avoid Tampering) Programmable Memory Backup Function 2 Programmable Output Universal supply voltage from 90 to 270 VAC Supply 24 VDC Available on Request
    Net Quantity
    • 1
    Dimensions
    Length
    • 15 cm
    Width
    • 15 cm
    Height
    • 15 cm
    Weight
    • 0.5 kg
    Other Dimensions
    • -
    Warranty
    Service Type
    • 1 year warranty against manufacturing defects and hardware malfunctions only, for additional information visit https://itherm.co.in/timers/ OR Contact on- 9324466415.
    Covered in Warranty
    • 1 Year Warranty against manufacturing defects, Hardware malfunctions, etc.
    Not Covered in Warranty
    • Accidental damage, water damage,etc.
    Warranty Summary
    • 1 year warranty against manufacturing defects , hardware malfunctions, etc.
    International Warranty
    • not applicable
    Domestic Warranty
    • 1
