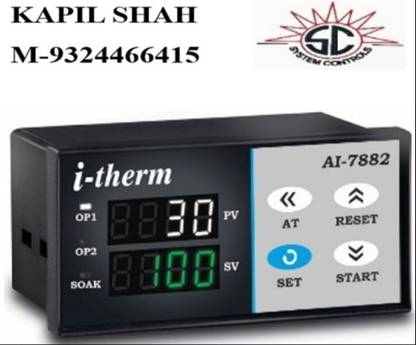

i-therm AI-7882 i-therm Digital Temperature Controller LED Display

Specification: PID Digital Temperature Controller - PID or ON/OFF Display Type = 0.36" - Dual 4 Digit -7 Segment LED type Sensor Input = J, K, R, S, & RTD: PT-100 Temp. Range: for J - (0-760'C), for K - (-99 to1300"C) for R,S (0-1700"C), Pt-100 - (-100 - 450"C) Sampling Time: - 125msec. Resolution: 1"C / 0.1"C(only for RTD) CJC for TC : Built in Automatic Digital Filter : 1 to 10sec. Relay Output: contact type, N/O,CM,N/C Contact Rating: 5A@250vac or 30VDC Life Expectancy: 5,00,000 Operations SSR Drive output: 12V@30mA - Non isolated Function: Output-1: Main Control output Control Action: ON-OFF /T.P. (Selectable) Control Mode: Heat / Cool (Selectable) Output:2 Programmable 1: auxillary, 2: Alram, 3: Sock timer, 4: Alram + Sock timer Environmental: Operating Range: 0-50"C, 5-90%Rh Storage Humidity: 95% Rh ( Non Condensing) Power Supply: Supply Voltage: 90-270VAC, 50/60Hz. Consumption: 4W Maximum. Physical: Housing: ABS Plastic Weight (gms): 200
