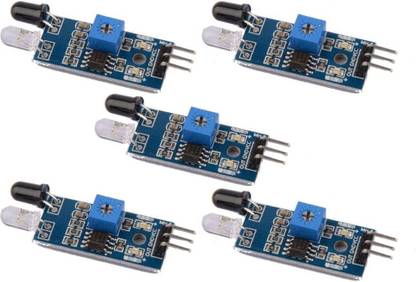

IDUINO 5 PCS IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot 3-Wire Electronic Components Electronic Hobby Kit

IDUINO 5 PCS IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot 3-Wire Electronic Components Electronic Hobby Kit

Share

IDUINO 5 PCS IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot 3-Wire Electronic Components Electronic Hobby Kit

Be the first to Review this product
Special price
₹362
1,200
69% off
i
Available offers
  • Special PriceGet extra 9% off (price inclusive of cashback/coupon)
    T&C
  • Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter
    T&C
  • Bank Offer5% cashback on Axis Bank Flipkart Debit Card up to ₹750
    T&C
  • Bank Offer10% offup to ₹1,500 on BOBCARD EMI Transactions of 6months and above tenures, Min Txn Value: ₹7,500
    T&C
  • Delivery
    Check
    Enter pincode
      Delivery by16 Aug, Saturday
      ?
      if ordered before 11:59 PM
    View Details
    Highlights
    • Power Source: DC
    • Material: Brass
    • Weight: 0.2
    Services
    • Cash on Delivery available
      ?
    Seller
    Advance Robotics
    3.4
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description
    1. When the module detects an obstacle in front of the signal , the green indicator light on the board level , while low-level continuous output signal OUT port , the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer to detect the distance increases ; counterclockwise to adjust the potentiometer to reduce the detection distance . 2 .active infrared sensors to detect the reflected , and thus the shape of the reflectivity of the target detection range is critical . The minimum detection distance which black , white maximum ; small objects from a small area , a large area from the Grand . 3 . the output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; Connection : VCC-VCC; GND-GND; OUT-IO. 4 .using the comparator LM393, stable . 5 .can be used for 3-5V DC power supply modules . When the power is turned on, the red power. 6. with the screw holes of 3mm , easy fixed installation . 7.board size : 3.1CM * 1.5CM. 8.each module shipments comparing the threshold voltage has been adjusted by the potentiometer is good , not exceptional circumstances, do not arbitrarily adjust the potentiometer. Interface Description (3-wire): 1. VCC: external 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU) 2. GND: GND External 3. OUT: small board digital output interfaces (0 and 1) Package Include: 5 x Infrared obstacle avoidance module
    Read More
    Specifications
    In The Box
    • 5 x ir sensor Module
    General
    Brand
    • IDUINO
    Model Number
    • 5 PCS IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot 3-Wire
    Skillset
    • General Knowledge
    Type
    • Electronic Components
    Minimum Age
    • 12
    ROHS Complaint
    • No
    Material
    • Brass
    Age Group
    • 14-16 Years
    Lights
    • No
    Sound
    • No
    Suitable For Gifting
    • NA
    Gift Pack
    • No
    Key Features
    • IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on, the module detects the distance 2 ~ 30cm, detection angle 35 ¡ã, the distance can detect potential is adjusted, The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay, it has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal)., Can be used for 3-5V DC power supply modules. It has red power indicator.
    Dimensions
    Width
    • 5 cm
    Height
    • 4 cm
    Weight
    • 0.2
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • 0
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • NA
