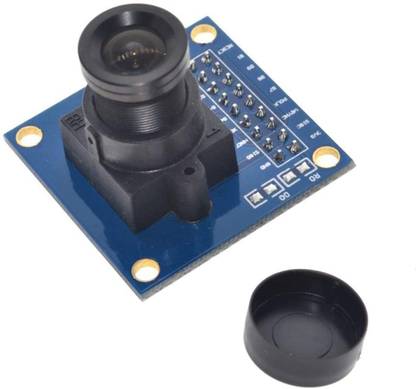

IDUINO OV7670 640x480 0.3Mega 300KP VGA CMOS Camera Module I2C for Arduino ARM FPGA Electronic Components Electronic Hobby Kit

Description: Pin Definition: 3V3-----Input power supply voltage (3.3,5V is recommended but not recommended) GDN-----grounding point SIO_C---Control clock of SCCB interface (Note: Some low-level microcontrollers require pull-upcontrol, similar to I2C interface) SIO_D--- Serial data input (out) side of SCCB interface (Note: Some low-level microcontrollers need pull-up control, similar to I2C interface) VSYNC---frame synchronization signal (output signal) HREF----Line synchronization signal (output signal) PCLK----pixel clock (output signal) D0-D7---Data port (output signal) RESTE---Reset port (normal use pull up) PWDN----power consumption selection mode (normal use low) For OV7670 with fifo please contact us Key Parameter: (1) Photoreceptor array 640X480; (2) IO voltage 2.5V to 3.0V (internal LDO power supply to the core 1.8V); (3) Power operation 60mW/15fpsVGAYUV; (4) Sleep <20?A; (5) Temperature operation - 30°C to 70°C; (6) Stable operation 0°C to 50°C; (7) Output format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Light (8) Size 1/6" (9) Field of View 25° (10) Maximum rms rate 30fps VGA Sensitivity 1.3V/(Lux-sec); (11) Signal to Noise Ratio 46 dB; (12) Dynamic Range 52dB (13) Browsing mode line by line; (14) Electron exposure 1 line to 510 lines; (15) Pixel area 3.6 ?m x 3.6 ?m; (16) Dark current 12 mV/s at 60°C;
