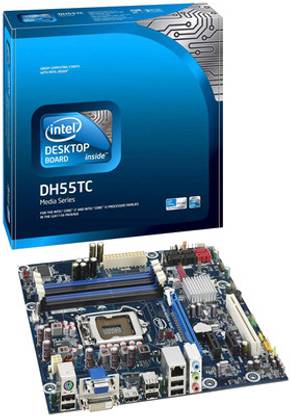

    Intel DH55TC with I3-540 Processor LGA 1156Socket Micro-ATX Intel H55 Chipset DDR3 Motherboard for Desktop

    Intel DH55TC with I3-540 Processor LGA 1156Socket Micro-ATX Intel H55 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel H55
    • Data Rate DDR3
    • Maximum RAM Capacity 16 GB
    • Form Factor: Micro-ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DH55TC with I3-540 Processor
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1156
    Compatible Processors
    • Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium processors
    Chipset
    • Intel H55
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 16 GB DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz
    ECC Support
    • No
    Graphics
    Integrated Graphics card
    • Yes
    Audio
    Audio Codec
    • Realtek ALC888S
    Connectivity
    Ethernet Controller
    • Intel 82578DC
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 2
    PCIe x16 Slots, Generation
    • 1, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 3
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Serial Port Header, 1 x 12 V Internal Power Connector, 1 x Rear Chassis Fan Header, S/PDIF Header, 1 x Front Panel Audio Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    eSATA Ports, Controller
    • 2
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • Intel Quiet System Technology implemented through Intel Management Engine in the Intel H55 PCH Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers using PWM control 4-wire and 3-wire (linear) fan speed control support for front and rear fans Support for Platform Environmental Control Interface (PECI)
    BIOS
    • Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Dimensions
    Dimensions
    • 243.84 x 243.84 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
    Ratings & Reviews
    4.8
    ★
    18 Ratings &
    5 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 14
    • 4
    • 0
    • 0
    • 0
    5

    amazing

    cant wait till it comes to stock.!! i had bought one before from flipkart. but as the rate is cheap i am willing to buy 2 more of it to gift my best friends! so if you are planning on buying it then close your eyes and buy it it is an amazing sale too!
    READ MORE

    iUnbox

    Jul, 2012

    3
    0
    Permalink
    Report Abuse
    4

    COOL.. BUT

    EVERYTHING PROMISED ABOVE IS RIGHT BUT I GOT THIS FOR 9572/Rs FROM FLIPKART ITSELF AND NOW ITS 5231/Rs THAT IS WHY ONE LESS STAR!!!

    OTHER THAN THAT ITS BEST FOR THOSE WHO ARE LOOKING FOR 2ND GENERATION PROCESSORS WITH REALLY AFFORDABLE PRICE

    MY WINDOWS RATING IS 6.9!!


    I WOULD SAY JUST GO FOR IT!!
    READ MORE

    ASIF PASHA

    Certified Buyer

    Jun, 2012

    1
    0
    Permalink
    Report Abuse
    5

    the best combo....

    i wud say it is the best combination its fast smooth and awsome and for your information the i3 540 gives a speed of 3.06Ghz but with this motherboard it would give you a speed of 3.07Ghz.....so its good and go for it
    READ MORE

    krish

    Feb, 2012

    1
    2
    Permalink
    Report Abuse
    4

    Intel DH55TC

    Yes i agree with Krish, I dont know about the Future but so far in my life has an Hardware Engineer, i would say DH55TC is the Best Board and Processor i have had in my entire Life.Simply Superb and its worth of Buying.
    READ MORE

    Sushanth M K

    Mar, 2012

    0
    1
    Permalink
    Report Abuse
    5

    so affordable n amazing

    i cant believe this .. when i brought my new pc i brought same motherboard n same processor too at the cost of 10000/- now its just 5241/- only i cant believe it.. i too say go for it .. i totally satisfied with this product .. :)
    READ MORE

    Shreyash Upadhyaya

    Jul, 2012

    0
    0
    Permalink
    Report Abuse
    +
    All 5 reviews
