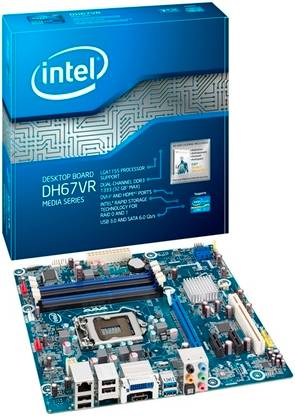

Intel DH67VR LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Suitable For Desktop
Intel H67
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

General

Brand	Intel
Model ID	DH67VR

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i7, Intel Core i5, Intel Core i3 processors Series with upto 65W TDP
Chipset	Intel H67
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz

Storage

RAID Configurations

0, 1

Graphics

Integrated Graphics card	No
Multi GPU Support	No

Audio

Audio Codec

Realtek ALC892

Connectivity

Ethernet Controller	Intel 82579V
Ethernet Features	10/100/1000 Mbits/sec LAN subsystem

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Header, S/PDIF Out Header, Consumer IR Header

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1

General Features

Hardware Monitoring	Hardware monitoring through the Nuvoton I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers Two fan sense inputs used to monitor fan activity Fan speed control
BIOS	Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Limitations

Requires a PrO.Cessor with Intel Graphics Technology

Dimensions

243.84 x 243.84 mm

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

★

2 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Major design flaw - purchase for budget machines only

This mobo has only 2 sata slots. With 1 taken by your cd/dvd drive, this means you can connect only a single hard disk. Expanding your storage would mean replacing existing drive instead of adding to it. ssd normal disk combos not possible. For those purchasing an altogether new system, this may not be a major problem and can even be alleviated slightly by using usb dvd/disk drives. Upgraders beware though.
In all other respects, this is a decent motherboard.
I would however suggest buying ...

Subin Shekhar

Nov, 2011

Permalink

Report Abuse
