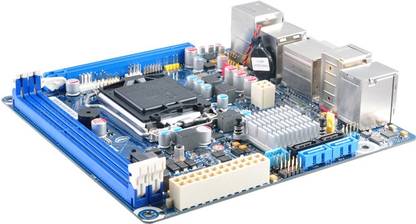

Intel DH77DF LGA 1155Socket Mini-ITX Intel H77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Intel H77
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Mini-ITX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, Intel H77 Chipset
eSATA Ports, Controller	1
HDMI Ports	1
IEEE 1394a Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1

General Features

Hardware Monitoring	Hardware Monitoring through the Nuvoton I/O Controller, Voltage Sense to Detect Out of Range Power Supply Voltages, Thermal Sense to Detect Out of Range Thermal Values, Two Fan Headers, Two Fan Sense Inputs Used to Monitor Fan Activity, Fan Speed Control
BIOS	Intel BIOS Resident in the SPI Flash Device, Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, SMBIOS
Features	e-Standby, ENERGY STAR 5.0, ErPCompliance
Advanced Technologies	Intel HD Audio Technology, Intel Rapid Storage Technology
Advanced Features	Fan Monitoring, Thermal and Voltage Monitoring, Chassis Intrusion Detection

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2133 (O.C) MHz, 1600 (O.C) MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Dimensions

170.18 x 170.18 mm

Essentials

Form Factor	Mini-ITX
Socket Type	LGA 1155
Compatible Processors	2nd Generation Intel Core i7 Processors, Intel Core i3 Processors, Intel Pentium Desktop Processors, 2nd Generation Intel Core i5 Processors, Intel Xeon Processors, Intel 3rd Generation Core i7 Processors, Intel 3rd Generation Core i5 Processors, Intel Celeron Desktop Processors, Intel Core i7 Processors, Intel Core i5 Processors
Chipset	Intel H77
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes

Storage

SATA 3 Gb/s	Intel H77 Chipset
SATA 6 Gb/s	Intel H77 Chipset
RAID Controller	Intel H77 Chipset
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCIe x16 Slots, Generation	1, 3
Mini PCIe Slots	1

General

Brand	Intel
Model ID	DH77DF
Key Features	Mini-ITX Form Factor, Maximum 16 GB DDR3, LGA 1155 Socket Type, 4 Memory Slots, Dual Channel DIMM Memory, Intel H77 Chipset, 1 HDMI Port

Connectivity

Ethernet Controller	Intel 82579V
Ethernet Features	10/100/1000 Mbits/sec LAN subsystem
Number of FireWire Ports	1

Audio

Audio Codec	Realtek ALC898
Audio Features	High Definition Audio

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
USB 3.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	Alternate Front Panel Power LED Header, Consumer IR Transmitter Header, Home Theater PC Header

Ratings & Reviews

4.5

★

2 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Excellent Board for a Home HTPC

Had been contemplating building my HTPC for long, i wanted to invest in a mini itx with a HDMI option. Even picked a Elite 120 to pair it with my choice of board. But when i went out to pick a board, there were hardly any sellers. Had to wait for a good 2 months while i searched for a suitable mini itx board. waited for a long time before it finally got listed on flipkart.
The board is good. Solid Build, good option for audio extensions. I plan to pair it next with a hdmi receiver, probably Y...

Santosh

Certified Buyer

Nov, 2012
