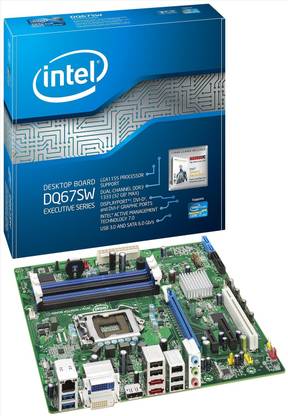

    Intel DQ67SW LGA 1155Socket Micro-ATX Intel Q67 Chipset DDR3 Motherboard for Desktop

    Intel DQ67SW LGA 1155Socket Micro-ATX Intel Q67 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel Q67
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    eSATA Ports, Controller
    • 2
    IEEE 1394a Ports
    • 1
    DVI Ports
    • 2
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    General Features
    Hardware Monitoring
    • Hardware monitoring through the Nuvoton Super I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers Two fan sense inputs used to monitor fan activity Fan speed control
    BIOS
    • Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz
    ECC Support
    • No
    Dimensions
    Dimensions
    • 243.84 x 243.84 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium processors with up to 95 W TDP
    Chipset
    • Intel Q67
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • No
    Multi GPU Support
    • No
    Storage
    RAID Configurations
    • 0, 1, 5, 10
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 1, 2
    PCIe x4 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 1, 2
    General
    Brand
    • Intel
    Model ID
    • DQ67SW
    Designed For
    • Desktop
    Key Features
    • Micro-ATX Form Factor, LGA 1155 Socket Type, Intel Q67, 4 Memory Slots, Maximum 32 GB DDR3, Dual Channel DIMM Memory, 2 SATA 3Gb/s Headers
    Connectivity
    Ethernet Controller
    • Intel 82579LM
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Number of FireWire Ports
    • 1
    Audio
    Audio Codec
    • Realtek ALC888S
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 2
    SATA 6 Gb/s Headers
    • 2
    USB 2.0 Headers
    • 4
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Serial Port Header, 1 x Front Panel Audio Header, S/PDIF Header
