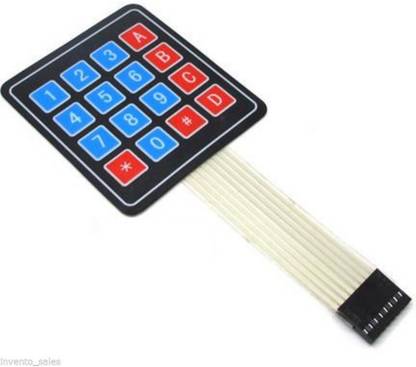

INVENTO 4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino AVR PIC Electronic Components Electronic Hobby Kit
Share
INVENTO 4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino AVR PIC Electronic Components Electronic Hobby Kit
4.6
27 Ratings & 2 Reviews
₹193
₹279
30% off
Available offers
T&C
T&C
T&C
T&C
Delivery
Check
Enter pincode
Delivery by5 Sep, Friday
?
if ordered before 5:59 AM
View Details
Highlights
- Power Source: DC
- RoHS Compliant
- Material: Plastic
- Weight: 50
Services
- Cash on Delivery available?
Seller
Description
Contact resistance of 500 (Ω)
Insulation resistance 100M (Ω)
Key Operating Force 150-200N
Rebound time 1 (ms)
Life of 100 million (times)
Operating Temperature 60 (℃)
1. the electronic characteristics:
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω ~ 500Ω
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100MΩ 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: <5ms
Life span: tactile type: ≥ one million times
2. the mechanical properties
Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm
3. the environment parameters
Operating temperature: -40 to +80
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)
Package Include
1 x Keypad Module
