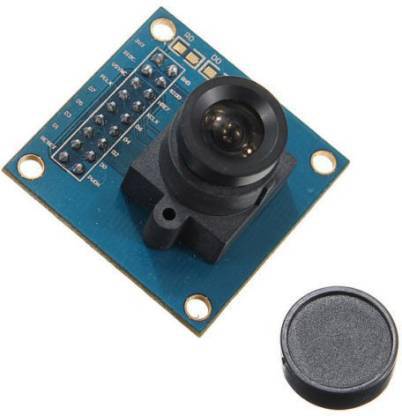

jivith OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB W/ I2C Interface Arduino Multipurpose Controller

Description 100% brand new and high quality Photosensitive Array: 640 x 480; IO Voltage: 2.5V to 3.0V; Operating Power: 60mW/15fpsVGAYUV; Sleeping Mode: <20 uA; Operating Temperature: -30 to 70 deg C.; Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit); Lens Size: 1/6"; Vision Angle: 25 degree; Max. Frame Rate: 30fps VGA; Sensitivity: 1.3V / (Lux-sec); Signal to Noise Ratio: 46 dB; DynamicRange: 52 dB; Browse Mode: By row; Electronic Exposure: 1 to 510 row; Pixel Coverage: 3.6um x 3.6um; Duck Current: 12 mV/s at 6'C Specification High sensitivity for low-light operation; Low operating voltage for embedded application; Standard SCCB interface compatible with I2C interface; Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr(4:2:2)output format; Support VGA, CIF and from CIF to 40 x 30 format; Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC; Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming; ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction; Flicker 50/60Hz auto detection; Color saturation level auto adjust; Edge enhancement level auto adjust; De-noise level auto adjust
