kamal touch switch touch sensor matrix 99 Multipurpose Controller

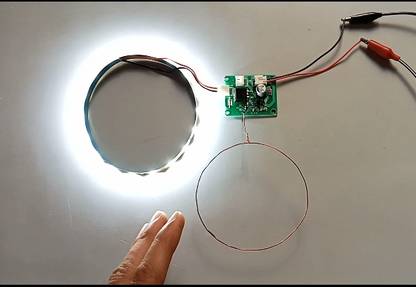

Description: This chip circuit is based on TTP223 1 Channel Capacitive Touch Sensing IC, which has been designed keeping various constructive purposes in mind.It can be used in lamp, alarm, DC motor, DIY project, epoxy craft touch sensor table, etc., the chip has interface facility and option to choose self lock or no lock mode, area of use depends on the user's design and strength, both glue and screw can be used to install the chip, input current is 5.0V to 12V DC, any current greater than 12V will cause the sensor to fail, for best results dc9V to 11V is ideal. this chip is not waterproof, size is 43mm×35mm. This chip supports only one character LED strip, not for RGB strip. Housing not included with chip Install the chip 6" above the ground. Installing the chip too close to the ground may affect the sensitivity of the sensor. The chip can be installed under 1" thick surfaces like plastic, wood, glass etc, the chip will be activated for 6 seconds from touch and then it will deactivate, it will be activated again on the next touch. But if you want to use it as a switch then short the points shown in the picture. By doing this you will get the facility of one touch on and one touch off. Install carefully for better results. Includes 12" LED strip with sensor chip and sensor copper wire. This chip is a great tool for creative, experimental, hobbyist, people to use.
