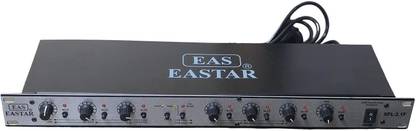

KH Professional_Sound Processor Stereo 2 Way / 3 Way/Mono Crossover - XPL-3.1F Powered Sound Mixer

Input= Connectors-XLR, Type- Electronically balanced/unbalanced, RF filtered , Impendance- Balanced > 30 K? , DCMax Input Level Output= Connectors-XLR , Type- Electronically balanced/unbalanced, RF filtered , Impedance- Unbalanced 100? , Max Output Level. Crossover Frequencies= Stereo Mode-Low/High- 140Hz and 1400 Hz Stereo Mode-Low/High- 140Hz and 1400 Hz Power Supply= Operating Voltage-180 to 240VAC Power Consumption-15 Watts. Common features 24db/octava linkwitz riley state varible Alignment 50Hz low frequency bass equaliser,(40HZ X-Q) + 4db at 50/40Hz, Obd at 40/28Hz and a-12dB/octave rolloff below. this Eq enhances the bass response of any system by raising the level at resonance, where the enclosure response is less. It also reduce cone polyester caps are 5% box type. lcs are FEt input Low Noise Types. Very simple to operate no set up required.
