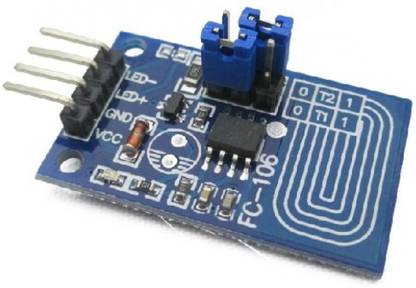

KitsGuru Capacitive Touch LED Dimmer PWM Control Switch Module Micro Controller Board Electronic Hobby Kit

Click touch (touch duration time is less than 550ms) can control the lamp. Click once, the lamp lights; click again, the lamp off. The initial brightness of lights lit the fixed for the whole brightness of 90%. Press the touch at long time (touch duration time is more than 550ms), you can achieve stepless dimming the lights. Press long time once, light levels gradually increase light levels when released after the release time parked in the corresponding brightness, long time if more than three seconds, the light levels to achieve maximum brightness does not change; again long press touch, light levels gradually decreased to stop when you release the light levels in the corresponding brightness release time, if a long time more than three seconds, the light levels after reaching the minimum brightness does not change.
