Delay circuits are used to protect elelctronic circuits from abrubt change in the power. These circuits introduce some finite delay before the device gets turn on .Most simple way to implement these circuits is by using capacitors. In this circuit we can see that if we turn on the DC power by closing the switch S1, both the capacitors start charging . It means that as long as they keep charging, no current or little current pass through the LED D1. As soon as the cpacitors gets fully charged, no dc current can flow through them(as per capacitor's property) and now all the power appear across the LED and R1. Two capacitors are used here to increase the charging time hence increasing the delay.
Read More
Specifications
In The Box
Package Contains:

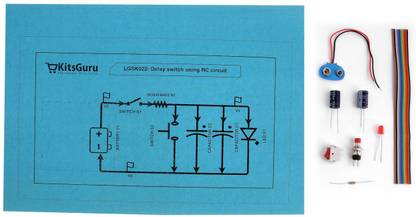

1. Circuit Diagram (1 Nos.)
2. Electronic Components. (As per Component List) WITHOUT BATTERY
3. Description of the Kit
4. Components List
General
brand
KitsGuru
Model Number
Delay switch using RC circuit LGSK022
Type
Educational
ROHS Complaint
Yes
Material
Paper
Dimensions
Width
4 cm
Height
24 cm
Weight
100
Power Features
Battery Type
9V Battery
No Of Batteries
1
Battery Size
LxBxH: 4.5cmx2.5cmx1.5cm
Power Source
Battery
Other Power Features
NA
