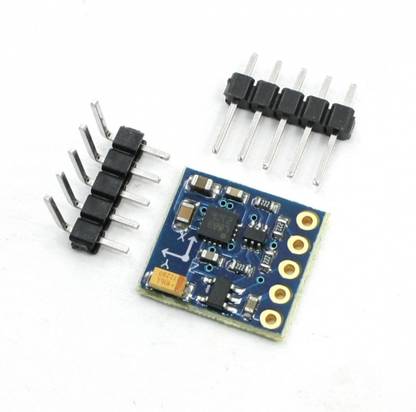

KitsGuru GY-271 HMC5883L Digital Compass Module Micro Controller Board Electronic Hobby Kit

The Compass Module 3-Axis HMC5883L is a low-field magnetic sensing device with a digital interface. The compass module converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions. The module is designed for use with a large variety of microcontrollers with different voltage requirements. 1. 3-Axis magneto-resistive sensor 2. 1 to 2 degree compass heading accuracy 3. Wide magnetic field range (+/-8 gauss) 4. Fast 160 Hz maximum output rate 5. Precision in-axis sensitivity and linearity 6. Measures Earth’s magnetic field, from milli-gauss to 8 gauss The HMC5883L utilizes Honeywell's Anisotropic Magneto resistive (AMR) technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors' solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth's magnetic fields, from milli-gauss to 8 gauss. Honeywell's Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry. 1. Power Requirements: 2.7 to 6.5 VDC 2. Communication Interface: I²C (up to 400 kHz) 3. Operating temperature: -22 to +185 °F (-30 to +85 °C) 4. Dimensions: 0.73 x .65 in ( 1.8 x 1.7 cm) 5. Module can be used with Arduino, Mbed, ARM or any other MCU
