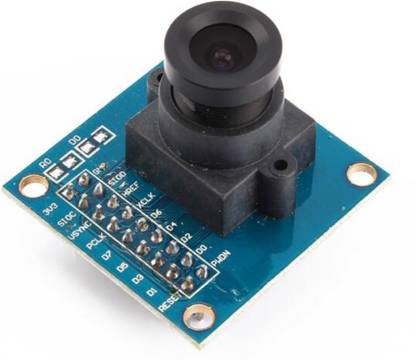

KitsGuru OV7670 640x480 VGA CMOS Camera Image Sensor Electronic Components Electronic Hobby Kit

The OV7670 is a low cost image sensor, DSP that can operate at a maximum of 30 fps and 640 x 480 ("VGA") resolutions, equivalent to 0.3 Megapixels. The captured image can be pre-processed by the DSP before sending it out. This preprocessing can be configured via the Serial Camera Control Bus (SCCB).OV7670 image sensor, small size, low voltage, providing single-chip VGA camera and image processor for all functions. Through the SCCB bus control, you can output the entire frame, sub-sampling window, etc. all take the resolution of 8 bits of data. The product images up to VGA 30 frames / sec. Users can fully control the image quality, data format and transmission. Process all image processing functions including gamma curves, white balance, saturation, color and so can SCCB interface programming. OmmiVision unique image sensor technology, sensor applications, by reducing or eliminating the optical or electrical defects such as fixed pattern noise, prop tail, floating powder, which enhances image quality, get a clear and stable color image. 1. High sensitivity for low light applications 2. Low voltage suitable for embedded applications 3. Standard SCCB interface, compatible with I2C Interface 4. RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format 5. support for VGA, CIF, and from a variety of sizes CIF to 40x30 6. VarioPixel sub-sampling methods 7. Auto affect the control features include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of streaks of light, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM 8. ISP has a compensation function to eliminate noise and dead pixels 9. support for image scaling 10. loss of lens light compensation 11. 50/60Hz auto-detection 12. Saturation adjust (UV adjustment) 13. adjust edge enhancement 14. automatic adjustment of noise reduction This Camera module is very powerful and easy-to-interface with 8/16/32 bit Micro-controller. It will provide vision to your small embedded systems and will be useful for plenty of application in Robotics, Image Processing, Simple Machine Vision, Object Detection, Color detection etc. 2x10 0.1" Output Connector will be easy to plug into any prototype board or bread board which will make your project/product implementation fast. 15.Model Number: OV7670 16.Pixel size: 3.6μm x 3.6μm 17.Support: VGA CIF 18.Interface: SCCB (compatible I2C) 19.Photographic array 640X480 20.IO voltage of 2.5V to 3.0V (internal LDO for nuclear power 1.8V) 21.Power work 60mW/15fpsVGAYUV 22.Sleep <20μA 23.Operating temperature -30 *C to 70 *C 24.Stable operation 0 *C to 50 *C 25.Output format (8-bit)? YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data 26.Optical size of 1 / 6 " 27.25 ° field of view 28.The maximum rate of 30fps VGA Chen 29.Sensitivity 1.3V / (Lux-sec) 30.46 dB SNR 31.52 dB dynamic range 32.View Mode Progressive 33.E-1 line to 510 line exposure 34.3.6μm x 3.6μm pixel size 35.Dark Current 12 mV / s at 60 *C
