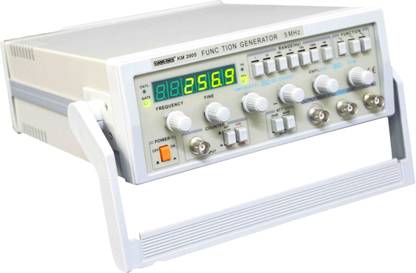

Kusam-meco KM_2005 Pulse Generator

ELECTRICAL SPECIFICATIONS : 1. Frequency : 0.1Hz ~ 5MHz 2. Output waveforms : Sine, triangle, square, positive and negative pulse, positive and negative ramp 3. Output impedance : 50W ± 10% 4. Amplitude : Not less than 50Vpp (open circuit) 5. DC voltage : 0 ~ ±10V continuously adjustable 6. Symmetry range : 90:10-- 10:90 7. Rising edge of square : Less than 50ns SINE CHARACTERISTIC : 1. Distortion : Less than 1% at 10H - 100KHz 2. Frequency response : 0.1 Hz ~ 100 MHz : £ ± 0.5dB 100 KHz ~ 5 MHz ±1dB TTL/CMOS OUTPUT : 1. Level : Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V, CMOS low less tan 0 - 14V continuously variable. 2. Rising time : Less than 100ns VCF INPUT : 1. Output voltage : -5V ~ 0V ±10 2. Max. volt controlled : 1000:1 3. Input signal : DC - 1KHz FREQUENCY COUNTER : 1. Measuring range : 1Hz ~ 10MHz ³10Vp-p 2. Input impedance : Not less than 1MW / 20F 3. Sensitivity : 100mVrms 4. Max. Input : 150V (AC+DC) 5. Input attenuation : 20dB 6. Accuracy : Less than 0. 003% ±1digit 7. Line power : 220V/110V±10% 50Hz/60Hz
