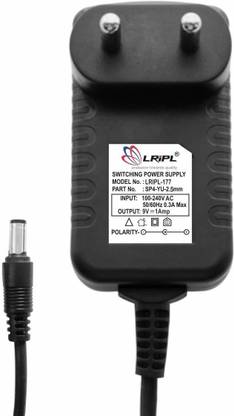

LRIPL 177 9V 1Amp (2.5mm PIN) for WiFi Router Worldwide Adaptor  (Black)

This model is a power Adapter for Audio/Video & Arduino etc. This is designed with high frequency switching technology which makes it highly reliable and compact in size and light in weight. This model operation at AC to DC, AC input 100VAC-240VAC 50-60Hz. output power 9 Watt max, with protection functions: Overload protection, Over current protection, Short Circuit Protection, over temperature protection and With 2.5 MM pin tip connecter to suit as per required Applications, and make sure the polarity of tips connect correct before use Specifications • Wider AC input range from 100VAC to 240VAC makes it suitable for Indian power conditions • Protected against Over load, Short circuit, Over Voltage & Over Temperature. • Works under low voltages and high voltage where the linear fails • Compact size and light weight • Designed to meet all the EMI/EMC and safety requirements Technical Detail • Input voltages 100 – 240VAC • Input Current < 0.3A • Input Frequency 50HZ – 60HZ • Ripple/Noise <50mV • Output Voltage 9.0VDC +/- 5% • Output Current 1 Amp. • Minimum Efficiency >75% • Operating Temperature Range 0 to 50°C • Plug Type Fix Fix (2 Pin) • Output Connector Type 2.5MM & As per Customer Requirement
