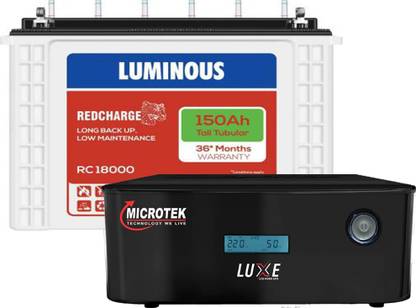

LUMINOUS RC18000 +MICROTEK LUXE 1000 Tubular Inverter Battery  (150)

TO BE DONE BY A COMPETERNT & KNOWLEDGEABLE PERSON. Switch OFF The Supply to the Distribution Point to which the UPS Unit is to be connected. For extra safety also remove the fuses from the line. Make absolutely sure with measurement that there is no power. A readily accessible disconnect devices must be incorporated in all fixed input wiring. The disconnect devices shall have a contact separation of at least 3mm. the UPS has automatic back feed isolation but for extra safety a warning label can be added on all primary power isolators installed remote from the UPS to warm electrical maintenance personnel. Check the Building wiring, improper wiring will not prevent the UPS from operating but will limit its protection capability. Improper building wiring could result in equipment damage that is not covered in warranty. Connect the battery/Batteries to UPS as per its requirement. Keep the front switch of UPS on OFF Position. Connect the Load wire to the right hole of Output Socket Located on The rear Panel of UPS. Switch ON the Front Switch of the UPS. Connect AC Input Wire to commercial mains socket. India’s Most Smartest & Intelligent LCD UPS with Micro Computer Inside. INTELLI Pure Sinewave Output safe for sensitive appliances & Noiseless Operations. 5 Stage Intelligent Battery charging algorithm. Advance circuits Breaker for Protection. Support Wide Battery charging for high power-Cut area. Standard charging option for normal power-cut area. Digital Single Controller / Micro-computer Inside: Micro Computer Based Intelligent control Design Pure Sine Wave Output. PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging. Display Indications (Status & Fault) Smart Overload Sense And Short Circuits Protection Easily Serviceable & Auto Reset Features. Mail Input Voltage Range Selection. INPUT VOLTAGE INVERTER MODE: 100V~300V UPS MODE: 180V~260V VA/WATTAGE 800VA / 640W OUTPUT VOLTAGE ON MAINS MODE SAME AS INPUT OUTPUT VOLTAGE / FREQUENCY ON UPS MODE 210V + 10% / 50Hz + 0.1Hz SWITCHING FROM MAINS TO UPS & UPS TO MAINS AUTOMATIC OUTPUT WAVEFORM ON MAINS MODE SAME AS INPUT OUTPUT WAVEFORM ON UPS MODE PURE SHINEWAVE BATTERY CHARGING CURRENT Constant Chaging approx 10% of the rated battery Current in AH CHARGER Power Factor Controlled Boost Technology EFFICIENCY >80% UPS OVERLOAD / UPS SHORT CIRCUIT 110% / 300% UPS TRANSFER TIME < 15msec. BROWN OUT MAINS VOLTAGE 100V + 40V TECHONOCLOGY Micro Controller Based Intelligent control Design AUTO RESET FEATURE Yes OPERATING TEMPERATURE 0~45°C DIMENTION LxWxH (MM) 382 x 339 x 193 mm
