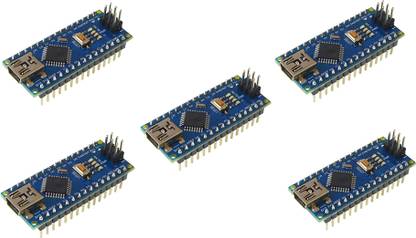

MAG BEE Nano Board Compatible with Arduino with soldered pin Pack Of 5 Electronic Components Electronic Hobby Kit

The Nano Board R3 CH340 chip chipboard is based on famous ?rduino platform and does all the functions of Uno, but with a smaller footprint. Nano Board R3 CH340 chip USB Mini Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. The Nano equips a low-cost USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Nano. The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano R3). It has more or less the same functionality of the Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The Nano ?rduino can be power via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from the total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed and 32kB of flash memory. Specifications:- 1. Microcontroller: ATmega328 2. Operating Voltage (VDC): 5 3. Input Voltage(Recommended): 5 to 12 V 4. Power Consumption (Watt): 1 5. Analog I/O Pins: 8 6. Digital I/O Pins: 22 7. PWM Output Pins: 6 8. Architecture: AVR 9. Clock Speed: 16 MHz 10. DC Current per I/O Pin (mA): 40 11. Flash Memory: 32 KB 12. EEPROM: 1KB 13. SRAM: 2 Note:- CH340 chip might not work directly with some PC/Laptop, you will need some ch340 drivers. If you are getting the error while uploading the code in the ?rduino Nano or not detecting the port need to upload the bootloader
