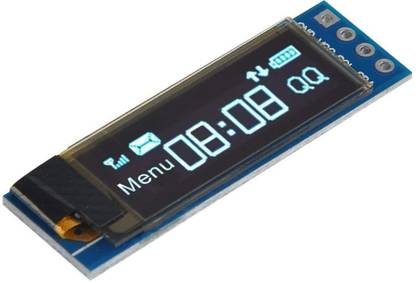

Manushre Manas Enterprises 0.91 inch OLED Display Module IIC SSD1306 128x32 OLED Screen Driver DC 3.3V~5V for Arduino ESP32 ESP8266 AVR PIC STM32 for Raspberry pi Electronic Components Electronic Hobby Kit

0.91 Inch OLED Module is a mini display screen with 128X32 resoluction and SSD1306 chipset.. Standard IIC communication interface pinout compatible with most MCU development board such as arduino, Raspberry Pi,C51 series etc. The Python library to use SSD1306-based 128x64 or 128x32 pixel OLED displays with a Raspberry Pi or Beaglebone Black too. Features: Easy to setup Power Input: 3.3V Good compatibility: Raspberry Pi 4B/3B+/3B/2B/Zero, Beagle Bone Black and so on Support IIC communication Protocol Super Mini size Resolution: 128x32 pixels Display Specifications: Display Mode: Passive Matrix Display Color: Monochrome (Blue) Drive Duty: 1/32 Duty Mechanical Specifications: Outline Drawing: According to the annexed outline drawing Number of Pixels: 128 × 32 Panel Size: 30.0 × 11.5 × 1.2 (mm) Active Area: 22.384 × 5.584 (mm) Pixel Pitch: 0.175 × 0.175 (mm) Pixel Size: 0.159 × 0.159 (mm) Weight: TBD
