Maxwell TTP229 16-Channel Capacitive Touch Sensor Module Electronic Components Electronic Hobby Kit Price in India - Buy Maxwell TTP229 16-Channel Capacitive Touch Sensor Module Electronic Components Electronic Hobby Kit online at Flipkart.com

Get notified when this item comes back in stock.

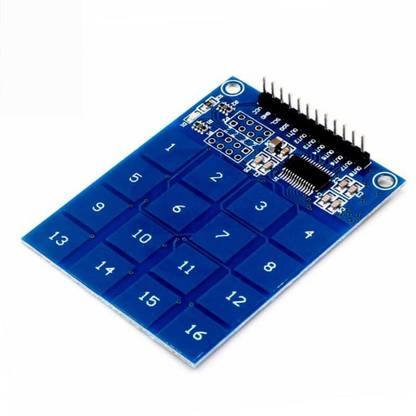

Maxwell TTP229 16-Channel Capacitive Touch Sensor Module Electronic Components Electronic Hobby Kit

Be the first to Review this product

Special price

₹229

₹249

8% off

Sold Out

This item is currently out of stock

Highlights

Seller

Hexonix

2.6

Specifications

In The Box

General

brand	Maxwell
Model Number	TTP229 16-Channel Capacitive Touch Sensor Module
Type	Electronic Components
Minimum Age	10
ROHS Complaint	No
Material	Epoxy
Net Quantity	1

Dimensions

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	Operating voltage 2.4V to 5.5V, Built-in Voltage regulator, Stand-by current at 3V: 0.25uA at 8 Hz Sampling Rate, Two different operating modes: independent 8 Channel O/P and I2C interface 16 Key Mode, 2 wires I2C interface for both 16 key and 8 key mode, Onboard LEDs to indicate which pad is being touched, 2 Wires serial interface can select active high or low by option, Provides two kinds of sampling rate: slow sampling rate 8Hz and fast sampling rate 64Hz, Optional maximum key-on time about 80sec, Auto calibration at power-up (keypad must not be touched for 0.5 seconds after power-up)
