METAPOD S25VB100 Bridge Rectifier 25 Amp. Diode Module for Welding Machine PCB,4 Pin PN Junction  (Pack of 16)

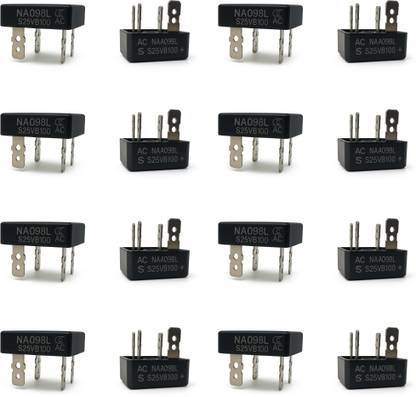

The METAPOD S25VB100 is a robust single-phase bridge rectifier module designed for reliable power conversion applications. This compact black module features a 50V rating and a practical 4-pin configuration for straightforward installation. The durable construction includes metal mounting tabs for secure placement and efficient heat dissipation. Perfect for industrial power supplies, motor controls, and various electronic applications where AC to DC conversion is required. The clear marking on the module's surface allows for easy identification and proper orientation during installation. This component is ideal for engineers and technicians working on power electronics projects where precise rectification is essential. The module's design prioritises reliability and performance in demanding electronic circuits. Key Features: • Model: S25VB100 • Max Average Forward Current (IF(av)): 25 Amps • Peak Reverse Voltage (VRRM): 1000 Volts • Forward Voltage Drop: ~1.1V per diode • Reverse Recovery: Fast switching • Polarity: Full Bridge Rectifier (4 terminals: AC, AC, +, -) • Package Type: Metal base, fully molded epoxy • Mounting: Bolt-on with heatsink support • Dielectric Strength: Excellent terminal-to-base isolation Max Repetitive Peak Voltage (VRRM) 1000V Max RMS Voltage 700V Max DC Blocking Voltage 1000V Average Forward Current (IF(av)) 25A Peak Surge Current (IFSM) 250A Forward Voltage Drop (Vf) 1.1V (typical) Reverse Recovery Time Fast Operating Temp Range -40°C to +150°C Mounting Type Bolt Mount
