    Metravi CTG-01 Coatmeter/Coating Thickness Gauge for both ferrous and non-ferrous substrates Magnetic Line Level
    Home
    Home Improvement
    Tools and Measuring Equipment
    Measuring and Layout Tools
    Levels
    Metravi Levels

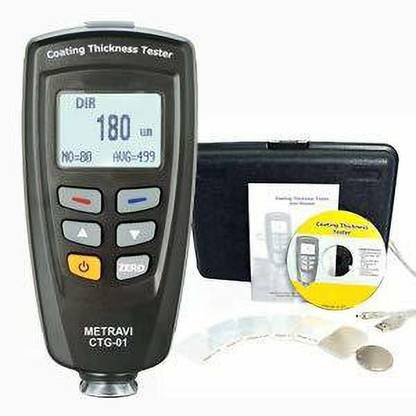

    Metravi CTG-01 Coatmeter/Coating Thickness Gauge for both ferrous and non-ferrous substrates Magnetic Line Level (9 cm)

    Share

    Metravi CTG-01 Coatmeter/Coating Thickness Gauge for both ferrous and non-ferrous substrates Magnetic Line Level  (9 cm)

    Be the first to Review this product
    ₹12,850
    ₹15,923
    19% off
    i
    Available offers
  • Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter
    T&C
  • Bank Offer10% off on BOBCARD EMI Transactions, up to ₹1,500 on orders of ₹5,000 and above
    T&C
  • Bank Offer10% off up to ₹1,250 on IDFC FIRST Bank Credit EMI Txns on orders of ₹5,000 and above
    T&C
  • Bank OfferFlat ₹10 Instant Cashback on Paytm UPI Trxns. Min Order Value ₹500. Valid once per Paytm account
    T&C
    • Warranty
    NA
    Delivery
    Check
    Enter pincode
      Delivery by8 Jul, Tuesday
      ?
    View Details
    Highlights
    • Type: Line Level
    • Magnetic
    • Usage Type: Home & Professional
    • Level Accuracy: 0 ~ 1250um / 0 ~ 49.21mils; Non-ferrous: 0 ~ 1250um / 0 ~ 49.21mils. Guaranteed Tolerance: Ferrous: ±3% +1um / ±3% + 0.039 mils; Non-ferrous: ±3% +1.5um / ±3% + 0.059mils.
    • Length: 9 cm
    Services
    • NA
    • Cash on Delivery available
      ?
    Seller
    INFINITYENGINEERS
    (New Seller)
    (Not Enough Ratings)
    • 7 Days Return Policy
      ?
  • See other sellers
    • Description
    Measures Coating Thickness on both Ferrous and Non-ferrous materials with Interface Cable & Software. The CTG-01 coating thickness gauges work either on the magnetic induction or on the eddy current principle, depending on the type of probe used. You can select the type of probe via MENU system or it can work automatically. Operating with MENU Easily. Zero Calibrating Easily. Low Battery, error indication. USB Interface for PC analysis software. Disable Auto Power-off function via MENU setting. Measuring Ranges: Ferrous : 0 ~ 1250um / 0 ~ 49.21mils; Non-ferrous: 0 ~ 1250um / 0 ~ 49.21mils. Guaranteed Tolerance: Ferrous: ±3% +1um / ±3% + 0.039 mils; Non-ferrous: ±3% +1.5um / ±3% + 0.059mils. Precision: Ferrous: 0.1um / 0.001 mils; Non-ferrous: 0.1um / 0.001 mils. Minimum Curvature radius: Ferrous: 1.5mm / Non-Ferrous: 3mm. Diameter of Minimum Area: Ferrous : 7 mm / Non ferrous: 5 mm. Basic critical thickness:- Ferrous : 0.5mm / Non-ferrous: 0.3mm.
    Read More
    Specifications
    In The Box
    • 1
    General
    Brand
    • Metravi
    Model Number
    • CTG-01
    Model Name
    • Coatmeter/Coating Thickness Gauge for both ferrous and non-ferrous substrates
    Length
    • 9 cm
    Type
    • Line Level
    Magnetic
    • Yes
    Color
    • Black
    Level Accuracy
    • 0 ~ 1250um / 0 ~ 49.21mils; Non-ferrous: 0 ~ 1250um / 0 ~ 49.21mils. Guaranteed Tolerance: Ferrous: ±3% +1um / ±3% + 0.039 mils; Non-ferrous: ±3% +1.5um / ±3% + 0.059mils.
    Net Quantity
    • 1
    Convenience Features
    Hold Function
    • No
    Auto Shut off
    • No
    Waterproof
    • No
    Back Light
    • No
    Additional Features
    Other Features
    • You can select the type of probe via MENU system or it can work automatically. Operating with MENU Easily. Zero Calibrating Easily. Low Battery, error indication. USB Interface for PC analysis software. Disable Auto Power-off function via MENU setting., Measures Coating Thickness on both Ferrous and Non-ferrous materials with Interface Cable & Software. The CTG-01 coating thickness gauges work either on the magnetic induction or on the eddy current principle, depending on the type of probe used.
    Warranty
    Warranty Summary
    • NA
    Covered in Warranty
    • NA
    Not Covered in Warranty
    • NA
    Warranty Service Type
    • NA
    Be the first to ask about this product
