    Metravi PRO TI-50 Handheld Thermal Imager Thermal Imager
    Home
    Industrial & Scientific Supplies
    Lab & Scientific Products
    Thermal Imagers
    Metravi Thermal Imagers

    Metravi PRO TI-50 Handheld Thermal Imager Thermal Imager

    Share

    Metravi PRO TI-50 Handheld Thermal Imager Thermal Imager

    Be the first to Review this product
    ₹2,68,713
    ₹2,99,999
    10% off
    i
    Warranty
    NA
    Delivery
    Check
    Enter pincode
      Delivery by26 Jul, Saturday
      ?
      if ordered before 7:59 AM
    View Details
    Services
    • NA
    • Cash on Delivery available
      ?
    Seller
    VISHAL2ENTERPRISES
    2.9
    • 7 Days Return Policy
      ?
  • See other sellers
    • Description

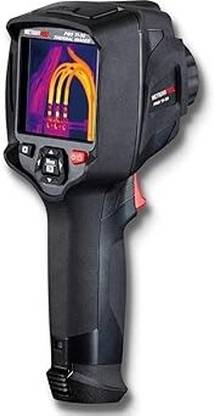

    The Metravi PRO TI-50 is a handheld Thermal Imager used for predictive and preventive maintenance, equipment troubleshooting and verification for upto 650°C with 384×288 pixels resolution. Easy to operate, just focus the lens towards the object and the thermal and visual images are displayed on the LCD, and can also be saved to a Micro SD Memory Card. Comes with USB Type C and WiFi interfaces, Touchscreen TFT LCD Display and Auto-Fusion function for ease of use in high density areas.
    Read More
    Specifications
    General
    Model Number
    • PRO TI-50 Handheld Thermal Imager
    Measurement Accuracy
    • Object Temperature Range: -20° to 150°C (-4° to 302°F) / 0° to 650°C (32° to 1202°F). Temperature Accuracy: ?2°C (3.6°F) or 2% of reading (Environment temperature 10-35°C; Object temperature >0?C).
    Minimum Focus Distance
    • 1 cm
    Temperature Range
    • Object Temperature Range: -20° to 150°C (-4° to 302°F) / 0° to 650°C (32° to 1202°F). Temperature Accuracy: ?2°C (3.6°F) or 2% of reading (Environment temperature 10-35°C; Object temperature >0?C).
    Infrared Image Resolution
    • 640×480 pixels pixels
    Infrared Spectral Range
    • 8-14?m
    Image File Formats
    • Standard JPEG, 14-bit measurement data included
    Color
    • Black
    Other Features
    • Object Temperature Range: -20° to 150°C (-4° to 302°F) / 0° to 650°C (32° to 1202°F). Temperature Accuracy: ?2°C (3.6°F) or 2% of reading (Environment temperature 10-35°C; Object temperature >0?C)., Field of View (FoV)/Minimum Focus Distance: 41.5°x 31.1°/ 0.5m. Spatial Resolution (IFoV): 1.89 mRad. Image Frequency: 50Hz. Focus Free. Zoom: 1-16x continuous, digital zoom., Focal Length: 9mm. Focal Plane Array (FPA)/Spectral Range: Uncooled microbolometer/8-14?m. IR Resolution: 384×288 Pixels. Display: 3.5 in. LCD, 640×480 pixels Touchscreen., Image Modes: Infrared Image, Visual Image, Picture in Picture, Auto-fusion, Zoom. Colour Palette: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather, Above Alarm, Below Alarm, Zone Alarm, Vision Zone. Automatic Hot/Cold Detection. Center Spot, Three manual spots.
    Net Quantity
    • 1
    Dimensions
    Length
    • 7.7 mm
    Width
    • 9.6 mm
    Height
    • 22.4 mm
    Weight
    • 1000 g
    Warranty
    Warranty Summary
    • NA
    Covered in Warranty
    • NA
    Not Covered in Warranty
    • NA
