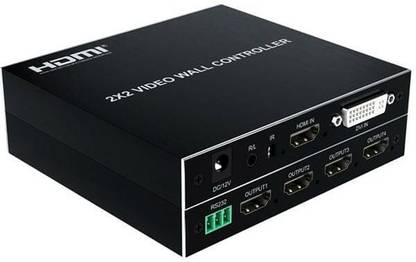

microware 1080P 2x2 Video Wall Controller with 4x1 Quad Screen and RS232 Control Media Streaming Device  (Black)

1080P 2x2 Video Wall Controller supports 1 HDMI/DVI input and 4 HDMI outputs. It can divide a complete HDMI and DVI high-definition image signal into 4 blocks and assign them to 4 video display units (such as rear projection units, LCD TVs, etc.), and then use the 4 HDMI video display units to form a dynamic image large screen. Features: - Support HDMI and DVI input - Support 4 HDMI output - Output support RGB 4:4:4 - Support input resolution 1080P/1080i/720P/576P/576i/480P - Support output resolution 1080P/1080i/720P/576P/576i/480P - Support RS232 control - Support splicing modes: 3x1/1x2/2x2/1x3/2x1/1x4/4x1. Easy operation. Just plug and play - Support 2x2 automatic splicing function - 1080P at 60Hz - High-performance chip: provide a better experience and avoid undesirable phenomena such as splash screen and snowflakes - Compatible with multiple devices: Supports devices with HDMI/DP interface, such as set-top boxes, desktop computers, and laptops. Can be connected to display devices with HDMI interface, including TVs, monitors, projectors, etc. - Compatible with multiple systems: for Windows series, MacOS, Linux and other systems. No need to install drivers; plug and play - IR remote control makes it easier to operate: support remote control and background software (RS232) control. Select inputs, adjust brightness and contrast, select modes, etc. Specifications: - Item name: HDMI 2x2 Video Wall Controller - Output interface: HDMI*4 - Input interface: HDMI*1; DVI*1 - Input Resolution: up to 1080P/60Hz - HDMI resolution: up to 1920x1080/60Hz - Audio format: Stereo - Input cable length: ? 5m/16.4ft AWG26 HDMI standard cable - Output cable length: ? 5m/16.4ft AWG26 HDMI standard cable - Maximum operating current: 300mA - Power adapter specifications: input AC (50HZ, 60HZ) 100V-240V; output: DC12V/1A - Operating temperature range: 0â?? to 45â?? - Dimensions: 121 x 119 x 19mm/4.8 x 4.7 x 0.7" (LxWxH) - Net weight: 228G/0.5LB Package Included: - 1 x Video Wall Controller - 1 x Power Adapter - 1 x Remote Control - 1 x RS232 Serial Cable - 1 x User Manual
