microware TV-out Cable Video HDMI Capture Card with Loop Out, HD 1080P USB 2.0 Capture Card for Live Streaming Broadcasting Video Recording for PS3/4, Xbox One & Xbox 360, Switch, DSLR, Camcorders  (Black, For TV)

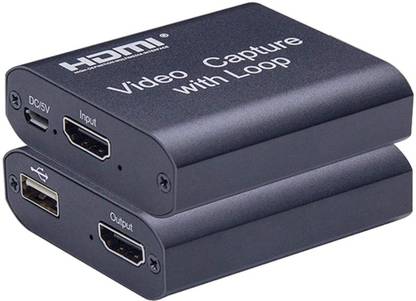

This capture card can capture HDMI video and HDMI audio at the same time, and it can transmit audio and video signals to a computer and smart phone for preview and storage. And it is suitable for high-definition capture, teaching recording, imaging, etc. How to connect? 1.Micro USB power cable connects to Micro USB port to supply power 2.Input port: input the stream video through the HDMI "Input" port. 3.Output port: connect the monitor through the HDMI "Output" port to preview the stream video in real time. 4.Connect it to the computer through the USB 2.0 port, use "VLC / OBS / Amcap, etc" to edit the video at the same time. Features: - Support HDMI loop out. - Support input max resolution 4K. - Support output max resolution 1080P. - Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution). - Support most acquisition software, such as for VLC, for OBS, for Amcap, etc. - Support for Windows, for Android, for MacOS. - Conform to USB Video and UVC standard. - Conform to USB Audio UAC standard. - Compact and portable.
