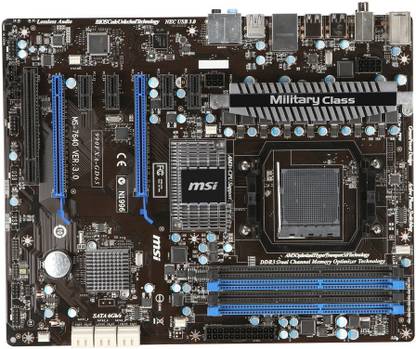

MSI 990FX-GD65 AM3+Socket ATX AMD 990FX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Year Domestic WarrantyKnow More

Highlights

AMD 990FX
Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	8
USB 3.0 Ports, Controller	2, NEC D720200
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	OC Genie II - Overclock and Unlock CPU Core in 1 Second, Instantly Boost System Performance Upto 248 Percent
Support CDs	Live Update 5, BIOS, Driver, VGA, Utility Update
OS Support	Windows: XP, Vista, 7
Features	USB Safeguard, Hyper Transport Bus, 9 Mounting Holes
Advanced Technologies	AMD Cool'n'Quiet Technology, Independent Dynamic Core Technology, AMD CoolCore Technology, MSI 3TB+ Infinity Technology
Advanced Features	Hi-c CAP, Icy Choke, Solid CAP, Super Charger, M-Flash, Lossless 24-bit / 192 KHz HD Audio, Winki 3

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	800 MHz, 1066 MHz, 1333 MHz, 1600 MHz, 1866(O.C) MHz, 2133(O.C) MHz
Buffered Memory	No

Dimensions

305 x 244 mm

Essentials

Form Factor	ATX
Socket Type	AM3+
Compatible Processors	64 bit AMD FX, Phenom II X2, Phenom II X3, Phenom II X4, Phenom II X6, Athlon II X2, Athlon II X3, Athlon II X4, Sempron CPU in AM3 / AM3+
FSB	5200 MHz
Chipset	AMD 990FX, AMD SB950
Chipset Manufacturer	AMD

Graphics

External Graphics Card Support	Yes
Multi GPU Support	Yes, NVIDIA SLI, AMD CrossFire

Storage

SATA 6 Gb/s	AMD SB950
RAID Controller	AMD SB950
RAID Configurations	0, 1,5, 10

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	4, 2
PCIe x16 Slots, Generation	2, 2

General

Brand	MSI
Model ID	990FX-GD65
Key Features	ATX Form Factor, AM3+ Socket Type, FSB 5200 MHz, AMD 990FX, AMD SB950, RAID Controller: AMD SB950, 4 Memory Slots, Maximum 32 GB DDR3

Connectivity

Ethernet Controller	Realtek 8111E
Ethernet Features	10/100/1000 Mbits/sec

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	With Jack Sensing, True Blu-ray Audio Support, Compliant with Azalia 1.0 Spec

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Connector, 1 x Chassis Intrusion Switch Connector, 1 x Serial Port Connector, 1 x Clear CMOS Jumper, 1 x SPDIF-out Connector

Ratings & Reviews

4.9

★

11 Ratings &

4 Reviews

5★
4★
3★
2★
1★

Superb board, great price

Good board, good stability, stays ultra cool and provides hell of a performance..... my board is coupled with a Phenom II X6 1090T and 8GB of RAM, and it provides greater stability across the entire spectrum of programs that I run from CAD to math simulation to gaming..... highly recommended for those on a serious budget.. Altough, the AMD overdrive utility and the ATI Catalyst control centre may have some problems running once the BIOS is upgraded to UEFI. If u dont upgrade the bios, the CPU...

Mainak Basu

Jul, 2012

Permalink

Report Abuse

FAST Board

I bought this as a bare bones kit. No problems connecting anything. Board works good and very fast. Has excellent features. I have not tried overclocking yet, but for me this board is already fast enough.

shri

Nov, 2012

Permalink

Report Abuse

Value for Money

I bought this mother board from Flipkart and i m very happy with this mother board i hav put AMD 8150 FX processor on this mother board with Two graphic cards(660TI) of MSI. i got the outstanding Speed of desktop. this is really great product My word on 990 GD65

Jitendra Rathore

Nov, 2012

Permalink

Report Abuse

wrong name given!

the name is wrong on flip kart it real name is MSI 990FXA-GD65 Motherboard, if you search with older name then you will get confused with it's next model which is MSI 990FXA-GD80 Motherboard. while searching it's unboxing or reviews

shubham singh

Feb, 2014

Permalink

Report Abuse

All 4 reviews
