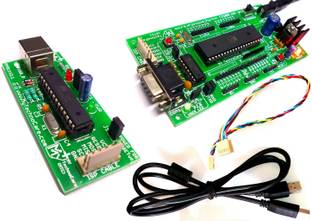

MY TechnoCare 8051 Development Board With USB Programmer Micro Controller Board Electronic Hobby Kit

ABOUT 8051 PROGRAMMER: For How To Program 8051 AVR Microcontroller |How to install driver |Circuit Diagram-Connection|Driver For All Windows OS 64|32-bit (All in 1 RAR file) Download= https://bit.ly/progallinfo | AVR 8051/8052 USB ISP Programmer For Atmel AVR & 8051 Microcontroller With Free USB Cable.Programmer Support many Digital Microcntrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) ATmega 8/328, 16, 32 etc with the same Programmer.For Supported IC List: SEE Product Images.It is low cost USB based programmer.No need to take out Target Micro controller from the development Board.Programmer will work with variety of Atmel AVR & 8051 microcontroller.ItAllows You to Read/Write the Microcontroller Flash,EEPROM,Fuse Bit & Lock Bit.Support Windows OS(Xp to 10),OS X & Linux. ATmega8 with USBasp Firmware Pre-loaded.SCK Option to Support Targets With Low Clock Speed(<1.5 MHz).5 KB/sec Maximum Write Speed. Programmer can Provide 5V supply for Target Microcontroller,so No Need of Any External Supply.Two Status LEDs|Green LED:Power Supply Indicator|RED LED :It is ON While Programmer is Busy.6 pin Polarized ISP Interface for Easy Connection.Supported Software: Progisp,AVRdude,Khazama AVR Programmer | ABOUT 8051 DEVELOPMENT BOARD: If You are Learning Microcontroller Programming & want to make Project based on 8051 microcontroller then This Board will help you.With this board you can Develop & Prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89CxxBridge Rectifiers allow this board to be Powered with both AC & DC power supply adapters.It RS232 Serial port for flashing like P89V51RD2 (NXP) microcontrollers & also use for interfacing GSM module,GPS Module,RFID Module.There is 5V, 12V, GND Power bus which allow to Power external Peripherals module. FEATURES of 8051 Board:DIP 40 Pin Microcontroller IC Socket For Easy Insert/Removal of Microcontroller IC.RS232 Interface Circuit for Easy Communication with PC & other Serial Devices(GPS modules, GSM Modems, etc).High quality FR-4(1.6 mm) PCB.On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply .Recommended Input Voltage : 9-12V.Min-Max Input Voltage : 9-18V.On-Board 5 mm Power Plug-in DC Jack.On-Board 5V regulator (LM7805) circuit.On-Board Power ON - OFF switch.On-Board power indication RED LED.On-Board GREEN USER LED connected to P2.0 through jumper JP3.On-Board Input User Switch P3.3 through jumper JP2.On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.On-board Quartz Crystal 11.05892 MHz.Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin.External Pull-Up resistors for Port 0.On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.Four 3mm mounting hole for easy mounting.On-board Reset button.Dimensions: 12cm x 6.4cm.NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM. For Example Code of 8051 Microcontroller.Have any Queries; Please Contact Us mytechnocare.info@gmail.com|Note:Design,color or Parts of the Product may vary as per the Availability.
