MY TechnoCare 8051 Project Development with Atmel AT89S52 Chip & RS232 Driver MAX232 IC Micro Controller Board Electronic Hobby Kit

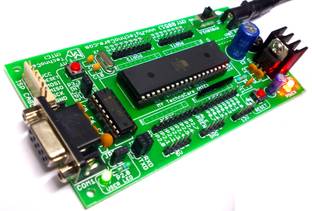

8051 Development Board with MAX232 & AT89S52 Microcontroller IC Project Kit Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip. About 8051 Development Board: If you are learning microcontroller programming and want to make project based on 8051 microcontroller than this board will help you. With this board you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. The board have and status LED. The 1.5 Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. Board having RS232 Serial port for flashing P89V51RD2 (NXP) microcontroller and also use for interfacing GSM module, GPS module , RFID module. There is 5V, 12V, GND power bus which allow to power external peripherals module. FEATURES of 8051 Board: • DIP 40 Pin Microcontroller IC Socket For Easy Insert and Removal of Microcontroller IC. • On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc) • High quality FR-4(1.6 mm) PCB • On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply • Recommended Input Voltage : 9-12V • Min-Max Input Voltage : 9-18V • On-Board 5 mm Power Plug-in DC Jack • On-Board 5V regulator (LM7805) circuit. • On-Board Power ON - OFF switch. • On-Board power indication RED LED. • On-Board GREEN USER LED connected to P2.0 through jumper JP3. • On-Board Input User Switch P3.3 through jumper JP2. • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2. • On-board Quartz Crystal 11.05892 MHz • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin • External Pull-Up resistors for Port 0 • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc. • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral. • Four 3mm mounting hole for easy mounting • On-board Reset button. • Dimensions: 12cm x 6.4cm Download 8051 kit document: Download Datasheet User Manual - 8051 Development Board = https://bit.ly/8051kitdata Download Circuit Diagram – 8051 Microcontroller Board = https://bit.ly/8051ckt Package Contents: 1 X 8051 Development Board 1 X AT89S52 On-Board Microcontroller IC 1 X MAX232 On-Board RS232 driver IC NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM. For Example Code of 8051 Microcontroller Please Contact US mytechnocare.info@gmail.com . Have any Queries; Please Contact Us .
