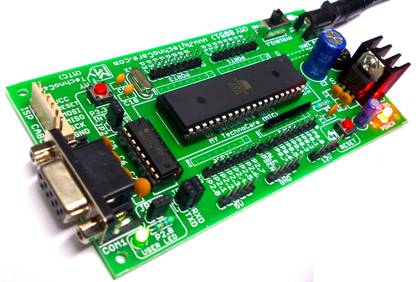

MY TechnoCare ATMEL 8051 Development Board Project evaluation Kit+MAX232,AT89S52 Microcontroller IC,Support 89S51/XX,89CXX,P89V51RD2 Architecture 40-Pin Chip Prototype PCB Multipurpose Controller

8051 Small Development Board With MAX232 & AT89S52 Microcontroller IC | Project Board Support AT89S51,AT89S52, P89V51RD2,development Full KIT DESCRIPTION: If you are learning microcontroller programming and want to make project based on 8051 microcontroller than this board will help you. With this board you can develop and prototype with any of 8051(AT89S51 ,AT89S52 ,P89V51RD2,AT89Cxx) 40 pin microcontrollers. The board have and status LED. The 1.5 Amp bridge rectifier allow this board to be powered with both AC and DC power supply adapters. Board having RS232 Serial port for flashing P89V51RD2 (NXP) microcontroller and also use for interfacing GSM module, GPS module , RFID module. There is 5V,12V,GND power bus which allow to power external peripherals module. FEATURES: DIP 40 Pin Microcontroller IC Socket. For Insert and Remove of IC Quartz crystal 11.05892 Mhz. RS232 Interface for Serial Communication With Jumper. Reset button. ON - OFF switch. Power Plug-in jack. Extension Slot on Every uC pin. GND bus. Vcc bus.(5V and 12V). On board power indication RED LED On board GREEN USER LED On Board Input USER Button. On Board USER External Interrupt INT1 Button Four mounting holes 3.0 mm for easy mounting. Dimensions: 12cm x 6.4cm Diagram of Circuit = http://www.mediafire.com/download/ad0l0oyvax6y1ad/8051_Development_Board_www.MY_TechnoCare.com.pdf Package Contents: 1 X MY010V2.0 MY8051 Project board 1 X AT89S52 OnBoard Microcontroller IC 1 X MAX232 OnBoard RS232 driver IC NOTE : POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM.
