onechance HC-SR501 PIR Motion Sensor- Adjust Ir Infrared Motion Sensor Detector Security Circuit and Motion Detector Electronic Hobby Kit

onechance HC-SR501 PIR Motion Sensor- Adjust Ir Infrared Motion Sensor Detector Security Circuit and Motion Detector Electronic Hobby Kit

Share

onechance HC-SR501 PIR Motion Sensor- Adjust Ir Infrared Motion Sensor Detector Security Circuit and Motion Detector Electronic Hobby Kit

3.5
11 Ratings & 1 Reviews
Special price
₹158
499
68% off
i
Available offers
  • Special PriceGet extra 18% off (price inclusive of cashback/coupon)
    T&C
  • Bank Offer100% Cashback upto 500Rs on Axis Bank SuperMoney Rupay CC UPI transactions on super.money UPI
    T&C
  • Bank Offer5% Unlimited Cashback on Flipkart Axis Bank Credit Card
    T&C
  • Warranty
    NA
    Delivery
    Check
    Enter pincode
      Delivery by21 Jun, Saturday
      ?
      if ordered before 7:59 AM
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Fiber Glass
    • Weight: 50
    Services
    • NA
    • Cash on Delivery available
      ?
    Seller
    Shambhuseller
    3.5
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description

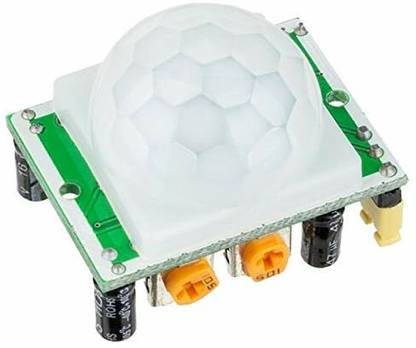

    PIR Sensor Module (Passive Infra-Red ) Sensor is an electronic semiconductor type sensor that measures infrared (IR) light radiating from objects in its field of view. This module detects and gives a trigger when there is any motion by a heat radiating object in its range of view. This sensor is passive as it does not emit or radiate any energy for detection. Every object above absolute zero emits heat, this heat signature is in Infrared wavelength which cannot be seen by naked eye, but they can be measured by infrared devices. This Sensor is covered with Fresnel Lenses, which create a wide angle of detection and also used for noise filtering. This PIR includes an adjustable delay before firing (approx 0.5 - 200 seconds), has adjustable sensitivity. It runs on 4.5V-20V power (or 3V by bypassing the regulator with a bit of soldering) and has a digital signal output (3.3V) high, 0V low. Its sensing range is up to 7 meters in a 100 degree cone.
    Read More
    Specifications
    In The Box
    • 1 Motion Sensor Detector Module
    General
    brand
    • onechance
    Model Number
    • HC-SR501 PIR Motion Sensor- Adjust Ir Infrared Motion Sensor Detector
    Type
    • Security Circuit and Motion Detector
    Minimum Age
    • 12
    ROHS Complaint
    • Yes
    Material
    • Fiber Glass
    Additional Features
    Other Features
    • Sensing range: less than 120 degrees, within 7 meters, Temperature: – 15 ~ +70, Dwell time: (Stay-ON time) adjustable between 5-300 Seconds
    Dimensions
    Width
    • 8 cm
    Height
    • 2.7 cm
    Other Dimensions
    • 8.6 x 8 x 2.7 cm; 50 Grams
    Weight
    • 50
    Power Features
    Battery Type
    • DC
    No Of Batteries
    • 0
    Battery Size
    • dc
    Power Source
    • DC
    Power Consumption
    • 65 mA
    Other Power Features
    • Working voltage: 5V - 20V Power Consumption: 65 mA TTL Output: 3.3V Lock Time: 0.2 sec
    Warranty
    Warranty Summary
    • NA
    Service Type
    • NA
    Covered in Warranty
    • NA
    Not Covered in Warranty
    • NA
