PRADHAAN 3Phase Auto-Manual Direct-on-line Delta 7.5HP 13-21A Motor Starter Panel 415VAC Centrifugal Water Pump (7.5 hp)
Share
PRADHAAN 3Phase Auto-Manual Direct-on-line Delta 7.5HP 13-21A Motor Starter Panel 415VAC Centrifugal Water Pump (7.5 hp)
3.3
9 Ratings & 0 Reviews₹5,976
₹23,210
74% off
Available offers
T&C
T&C
T&C
T&C
Warranty
1 Months
Delivery
Check
Enter pincode
Delivery by31 Aug, Sunday
?
if ordered before 10:59 PM
Installation & Demo by30 Aug, Saturday|₹498
View Details
Highlights
- Three-phase Water Pump
- In-built Thermal Over Load Protector
- Power Rating: 5.5 kW
- Power Supply: 380-415V AC
- Motor Power: 7.5 hp
Services
- 1 Months
- Cash on Delivery available?
Seller
Description

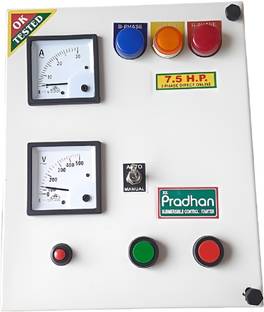

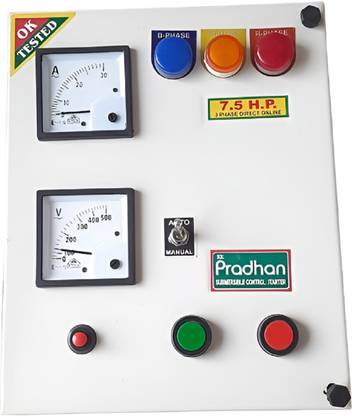

PRADHAN Three Phase Direct online Heavy duty DOL/Delta Motor Starter panel in 7.5 HP Power with 25 Amps 4pole Jhula type KOTHARI copper contactor with easy replaceable Heavy Duty fixed and moving contacts and Coil Voltage range between 380-440 Volts AC.
4Pole Jhula Contactor Pickup Coil power 360V-440 V AC with Heavy Duty Bakelite Connector plate upto 100 Amps capacity provided for easy connection of incoming Power and outgoing Motor supply wires.
Automatic/ Manual operating Function with inbuilt single phasing protection, Overload relay range in 7.5HP starter 13-21 Amp. for essential safety of Motor with performance.
Short Circuit protection and power cut-off by 32Amp.MCBs unit with Ammeter provided for measuring highest current consumed by motor, Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter.
R/Y/B indication Lamp for indicate incoming three power supply and wire quality 1.5sq.mm used in control wiring, Main wiring used 6.0sq.mm. All product used in Starter with long life genius product Durability.
Read More
Specifications
In The Box
|
General
| Brand |
|
| Model Name |
|
| Type |
|
| Usage Type |
|
| Shade |
|
| Color |
|
| Body Material |
|
| Applications |
|
| Adjustable Speed |
|
| Certification |
|
| Battery Backup |
|
| Flow Rate |
|
| Total Head |
|
| Temperature Rating |
|
Power Features
| Phase |
|
| Thermal Over Load Protector |
|
| Power Supply |
|
| Power Rating |
|
| Motor Power |
|
Additional Features
| Corrosion Resistant |
|
| Other Features |
|
Dimensions
| Width |
|
| Height |
|
| Depth |
|
| Weight |
|
| Other Dimensions |
|
Warranty
| Warranty Summary |
|
| Service Type |
|
| Covered in Warranty |
|
| Not Covered in Warranty |
|
Frequently Bought Together
Please add at least 1 add-on item to proceed
Ratings & Reviews
3.3
★
9 Ratings &
0 Reviews
- 5★
- 4★
- 3★
- 2★
- 1★
- 4
- 0
- 2
- 1
- 2
Have you used this product? Be the first to review!
Questions and Answers
Q:Can I use in 10hp induction motor?
A:10HP motor line load will be higher, starter responsibility yours.
VRIDDHIENGINEERS2022
Flipkart Seller1
1
Report Abuse
Q:Can we use for 12.5 hp motor
A:No, Technically not possible beacuse this panel is design sustainable to max. 10HP motor load.
Panel may be reached on dead condition.
VRIDDHIENGINEERS2022
Flipkart Seller0
0
Report Abuse
Q:Can I use for run 12.5 hp motor if not pls provide for that as well
A:No, It may burn due to high torque generated at initial start-up.
VRIDDHIENGINEERS2022
Flipkart Seller0
0
Report Abuse
Q:It used samrsabul motar?
A:Yes, you can use upto three phase 7.5 HP submersible motors.
VRIDDHIENGINEERS2022
Flipkart Seller0
1
Report Abuse
Q:Can I use it for 7.5hp motor
A:Yes, you can maximum 21Amp.
VRIDDHIENGINEERS2022
Flipkart Seller0
0
Report Abuse
Q:Can i use for 5hp motar
A:Yes, you can do it.
For safty, please set realy range in minimum amp. range.
VRIDDHIENGINEERS2022
Flipkart Seller0
0
Report Abuse
Q:10 hp motor starter available or not dual cable
A:You can run 10HP motor on 7.5HP starter, its testing durability till 12.5HP.
VRIDDHIENGINEERS2022
Flipkart Seller0
0
Report Abuse
