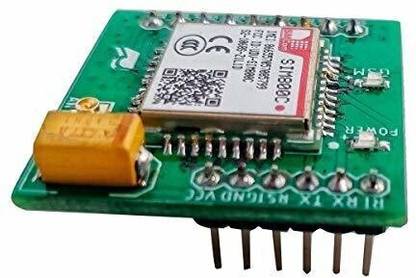

RAIVENS SIM800L GPRS GSM Module MicroSIM Card Core Board Quad-band 850/900/1800/1900MHz Electronic Components Electronic Hobby Kit

The Sim800C GPRSGSM Shield with Antenna provides you with a way to use the GSM phone network to receive data from a remote location?and it is compatible with all boards which have the same form factor (and pinout) as a standard Arduino Board. This shield can also be applied to DIY phones for calling, receiving and sending messages, making GPS trackers or other applications like Smart home, etc. SIM800C GPRSGSM Shield delivers GSMGPRS85090018001900MHz signals for Audio, SMS and GPRS Service. Also, it runs at the low power consumption of about 0.6mA in sleep mode but acts compliant to GSM phase 22+ Class 4 (2 W @850 900 MHz), Class 1 (1 W @ 18001900MHz) with a two-in-one headset jack. What’s more, to make your project more flexible and efficient, we have prepared two different antennas for you. One is the traditional GPRS antenna which is more sensitive while another one is an onboard antenna which is more compact and easy to install. Features Quad-Band 850 900 1800 1900 MHz GPRS multi-slot class 1012 GPRS mobile station class B Compliant to GSM phase 22+ Onboard Provision for Mic and Speaker. Specifications Chip used QUAD BAND SIM800C GSM CHIP. Arduino compatibility Arduino UNO R3, Arduino Mega etc. Antenna type finger antenna. Output TTL serial output. Simcard holder standard size. Buzzer for CALL and SMS indication. Indication LEDs PWR – Power Indication STS – Status Indication NTW – Network Indication PINOUTS o2 – RX o3 – TX Provision for the headphone jack, mic, and speaker. Package Includes 1 x Sim800C GPRSGSM Shield with Antenna.
