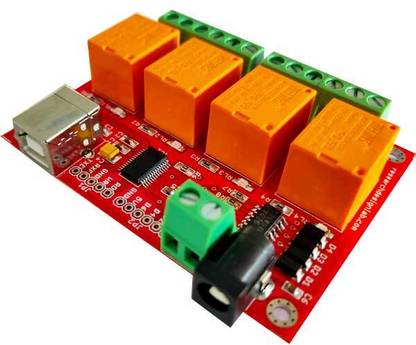

    Rdl USB 4 Channel Relay Board-FT245RL USB RELAY BAORD Motor Control Electronic Hobby Kit
    Home
    Toys and Games
    Hobby Kits
    Electronic Kits
    Rdl Electronic Kits

    Rdl USB 4 Channel Relay Board-FT245RL USB RELAY BAORD Motor Control Electronic Hobby Kit

    Share

    Rdl USB 4 Channel Relay Board-FT245RL USB RELAY BAORD Motor Control Electronic Hobby Kit

    Be the first to Review this product
    Special price
    ₹1,236
    ₹1,699
    27% off
    i
    Available offers
  • Special PriceGet extra 13% off (price inclusive of cashback/coupon)
    T&C
  • Bank Offer5% Unlimited Cashback on Flipkart Axis Bank Credit Card
    T&C
    • Delivery
    Check
    Enter pincode
      Delivery by12 Jun, Thursday|Free
      ?
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Epoxy
    • Weight: 100
    Services
    • Cash on Delivery available
      ?
    Seller
    RDL
    (Not Enough Ratings)
    • 7 Days Return Policy
      ?
  • See other sellers
    • Specifications
    In The Box
    • USB 4 Channel Relay Board-FT245RL
    General
    brand
    • Rdl
    Model Number
    • USB 4 Channel Relay Board-FT245RL USB RELAY BAORD
    Type
    • Motor Control
    Minimum Age
    • 12
    ROHS Complaint
    • Yes
    Material
    • Epoxy
    Net Quantity
    • 1
    Dimensions
    Width
    • 6 cm
    Height
    • 1.5 cm
    Other Dimensions
    • 80MM * 60MM
    Weight
    • 100
    Power Features
    Battery Type
    • 12V 2A
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC
    Power Consumption
    • 300mA
    Other Power Features
    • Completely opto isolated relay module, LED indication for relay & power supply., 4x SPDT Relay (7A 250V, 12A 120V, 10A 125VAC, 10A 28VDC), 4x Digital IO 5v, USB Control Chipset FT245RL, Greater Power handling PCB 70 Micron with good quality screw Connector, Relay Module Power supply selection available in 5V / 12V / 24 V., Configurable FIFO interface I/O pins., Data transfer rates up to 1Mbyte / second*, Fully integrated USB termination resistors., Device supplied pre-programmed with unique USB serial number., USB 2.0 Full Speed compatible., Fully integrated 1024 bit EEPROM storing, device descriptors and FIFO I/O configuration, Device supplied pre-programmed with unique USB serial number., Integrated power-on-reset circuit., 40°C to 85°C extended operating temperature range., Net / JAVA / Python SDK available for developing custom application
    Questions and Answers
    Q:Is this product voice controlled?
    A:No. It's USB based device. USB (COM Port) port through control.
