Robotbanao Optocoupler 8-Channel Relay Control Panel Plc 5v Module for Arduino Electronic Components Electronic Hobby Kit
Get notified when this item comes back in stock.

Robotbanao Optocoupler 8-Channel Relay Control Panel Plc 5v Module for Arduino Electronic Components Electronic Hobby Kit

Share

Robotbanao Optocoupler 8-Channel Relay Control Panel Plc 5v Module for Arduino Electronic Components Electronic Hobby Kit

3.7
15 Ratings & 3 Reviews
₹633
999
36% off
i
Sold Out
This item is currently out of stock
Warranty
Na
Highlights
  • Power Source: DC
  • Material: Epoxy
  • Weight: 0.2
Seller
SelectBrands
(Not Enough Ratings)
  • 7 Days Return Policy
    ?
  • See other sellers
  • Description

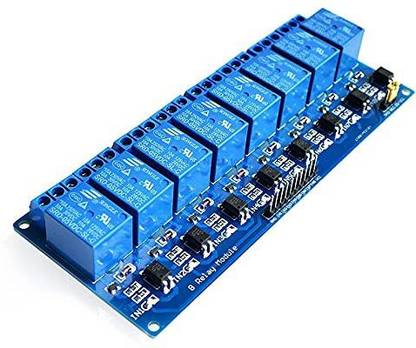

    This item is a 5v 8 channel relay interface board,it can be controlled directly by a wide range of microcontrollers such as for , avr, pic, arm and so on. 8 channel relay interface board. Each one needs 15 20ma driver current. Equiped with high current relay: dc30v 10a ac250v 10a. Each relay has normally open and normally closed contact. The 8 channels are optically isolated, safe, reliable, anti interference. Can be selected by jumper relay and ttl or ground. With power indicator,8 way road has a status indicator. With a relay coil to absorb the diode protection. The circuit board size 140mm x 55mm mounting hole size 133mm x 40mm. This 8-channel relay module can be used to control various appliances, and other equipment with large current. It can be controlled by a number of microcontrollers such as Arduino, AVR, PIC, ARM. It is ideally suited to controlling larger voltages in your project through Wi-Fi. It can be used to control 220V AC load. It has a normally open contact and one normally close contact.
    Read More
    Specifications
    In The Box
    • 1
    General
    brand
    • Robotbanao
    Model Number
    • Optocoupler 8-Channel Relay Control Panel Plc 5v Module for Arduino
    Type
    • Electronic Components
    ROHS Complaint
    • No
    Material
    • Epoxy
    Additional Features
    Other Features
    • This is a Robotbanao 8-Channel 5V 10A Relay Module with optocoupler. It can be directly controlled by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It can control various appliances and other types of equipment with large current. Output rating for each relay is 250V/10A AC or 5V/10A DC., Triode drive | Increasing relay coil | Strong driving ability | Fixed bolt hole | Easy installation | Diode effusion protection | Short response time | Board mode selection | Real-time working status indicator | Pull-down circuit for avoidance of malfunction | High impedance controller pin, No. of channels:8 | Operating Voltage:5V | Max Switching Current (AC):10A @250V AC | Max Switching Current (DC):10A @30V DC
    Dimensions
    Width
    • 5 cm
    Height
    • 2 cm
    Weight
    • 0.2
    Power Features
    Battery Type
    • na
    No Of Batteries
    • na
    Battery Size
    • na
    Power Source
    • DC
    Other Power Features
    • na
    Warranty
    Warranty Summary
    • Na
    Service Type
    • Na
    Covered in Warranty
    • Na
    Not Covered in Warranty
    • Na
