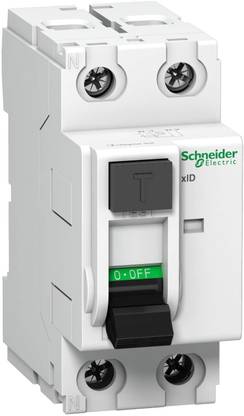

schneider Acti 9 25 A Earth Leakage Sensitivity 30 mA 2 Pole RCCB. A9N16201 MCB  (2)

Device Application: Distribution Range of Product: Acti 9 Range: Acti 9 Product Name: XC60 Product or Component Type: Miniature circuit-breaker Device Short Name: XC60 Poles Description: 1P Number of Protected Poles: 1 [IN] Rated Current: 20 A Network Type: AC Trip Unit Technology: Thermal-magnetic Curve Code: C Utilisation Category: Category A conforming to EN/IEC 60947-2 Suitability for Isolation: Yes conforming to EN/IEC 60947-2 Complementary Network Frequency: 50/60 Hz [UE] Rated Operational Voltage: 220...240 V AC 50/60 Hz, 60 V DC, 12...48 V DC Magnetic Tripping Limit: 8 x In +/- 20 % Breaking Capacity: 10 kA Icu conforming to EN/IEC 60947-2 - 12...48 V DC [UI] Rated Insulation Voltage: 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 [UIMP] Rated Impulse Withstand Voltage: 6 kV conforming to EN/IEC 60947-2 Contact Position Indicator: Yes Control Type: Toggle Local Signalling: ON/OFF indication Mounting Mode: Clip-on Mounting Support: 35 mm DIN rail Comb Busbar and Distribution Block Compatibility: YES on top 9 mm Pitches: 2 Height: 85 mm Width: 18 mm Depth: 77.5 mm Product Weight: 0.115 kg Colour: White Mechanical Durability: 20000 cycles Electrical Durability: 10000 cycles Connections - Terminals: Biconnect, top, Tunnel type terminals, bottom flexible wire(s) 25 mm² max, Tunnel type terminals, bottom rigid wire(s) 35 mm² max Wire Stripping Length: 13 mm top or bottom Tightening Torque: 3.5 N.m Earth-Leakage Protection: Separate block Product Compatibility: C60 accessories, C60 auxiliary
