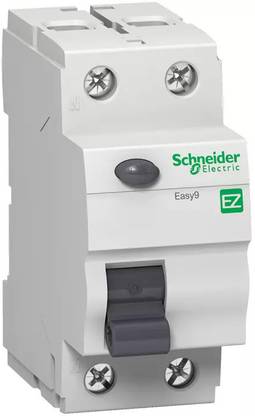

Schneider Electric Easy9 Residual Current Circuit Breaker - 2P - 63A - 100mA - AC type - 240V EZ9R55263 MCB  (2)

This Easy9 product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 63A In rated current, 100mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. It also has protection against fire hazards due to persistent earth fault current. This product has a positive contact indications with fault tripping indication on the front panel by the position of the handle (0-I engraved). This is dedicated for residential and small commercial buildings market segment. It is compliant with IS 12640-1 and IEC 61008-1 standard. The (Im/I?m) rated breaking and making short circuit capacity is 630A. The (Inc/I?c) conditional rated short circuit current is 3000A. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 5000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 82mm x (D) 77.5mm. The weight is 0.235kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -25°C to 85°C.
