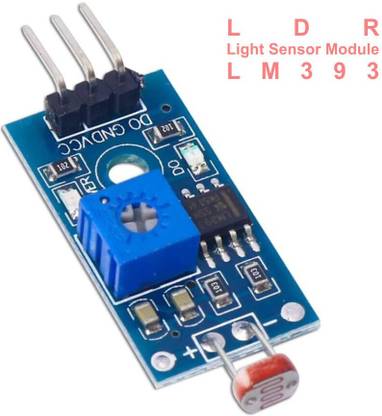

Scienticy LM393 Optical Photosensitive Digital LDR Sensor Module – 3 Pin good quality Color Sensor

Scienticy LM393 Optical Photosensitive Digital LDR Sensor Module – 3 Pin good quality Color Sensor

Share

Scienticy LM393 Optical Photosensitive Digital LDR Sensor Module – 3 Pin good quality Color Sensor

Be the first to Review this product
₹272
330
17% off
i
Warranty
NA
Delivery
Check
Enter pincode
    Delivery by12 Nov, Wednesday
    ?
    if ordered before 11:59 AM
View Details
Services
  • NA
  • Cash on Delivery available
    ?
Seller
Scienticy
3.6
  • 7 days return policy
    ?
  • See other sellers
  • Description
    Scienticy-[A] Digital LDR Module – 3 Pin is used to detect the presence of light / measuring the intensity of light. The output of the module goes high in the presence of light and it becomes low in the absence of light. The sensitivity of signal detection can be adjusted using the potentiometer._____[B] Use it to detect the light brightness in your environment and decide to switch OFF or ON light? Or maybe to adjust the brightness of the LED of your house?._____[C] You can adjust the threshold (sensitivity) of the digital output by tuning the onboard variable resistor (potentiometer). Simple usage as it is the digital output, so you will know is the light present and decide what to do with it. _____[D] It comes with an M3 mounting hole for ease of attaching it to an object. Onboard, it provides an LDR, high sensitivity and commonly being used for light detection. The module comes with a power LED and a status LED as an indicator._____[E] Digital LDR Module Photosensitive resistor module most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity._____[F] LDR Module module compatible with arduino (uno or nano) projects.
    Read More
    Specifications
    In The Box
    Sales Package
    • 1
    General
    Brand
    • Scienticy
    Model Number
    • LM393 Optical Photosensitive Digital LDR Sensor Module – 3 Pin good quality
    Type
    • Color Sensor
    Minimum Sensing Range
    • 1
    Maximum Sensing Range
    • 30
    Power Requirement
    • 5v
    Power Consumption
    • 0.1 W
    Maximum Operating Temperature
    • 60 degC
    Minimum Operating Temperature
    • 0 degC
    Color
    • Blue
    Detection Angle
    • 60 Degree
    Other Features
    • LM393 based design.....
    • Can detect ambient brightness and light intensity......
    • Adjustable sensitivity (via blue digital potentiometer adjustment)......
    • Output Digital – 0V to 5V, Adjustable trigger level from preset......
    • LEDs indicating output and power.....
    • Operating Voltage: 3.3V to 5V DC.
    • Operating Current: 15ma.
    Net Quantity
    • 1
    Dimensions
    Length
    • 3.1 cm
    Width
    • 1.4 cm
    Height
    • 0.1 cm
    Weight
    • 10 kg
    Warranty
    Warranty Summary
    • NA
