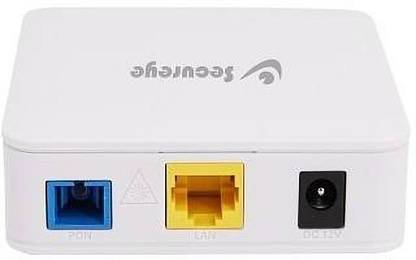

SECUREYE S-XPON-1000-ONT-R-N G/EPON 1GE Xpon ONU Router Dual mode Epon and Gpon Router 0 GHz 0 Mbps Wifi Speed NA Ethernet (Cable Broadband)  (White)

PON interface: 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength: Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation: ? 2-8dBm Receiving sensitivity: ? -28dBm Transmitting optical power: 0-+4dBm Transmission distance: 20KM LAN Interface 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector LED 3, For Status of REG, SYS, LINK/ACT Operating Condition: Temperature: -30°C – +70°C Humidity: 10% – 90% ( non-condensing ) Storing Condition Temperature: -30°C – +70°C Humidity: 10% – 90% ( non-condensing ) Power Supply: DC 12V/0.5A Dimension: 82mmx82mmx25mm ( LxWxH ) Net weight: 85g Software Parameters: Basic Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Basic Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support authentication SN/Psw/Loid/Loid+Psw Alarm Support Dying Gasp Support Port Loop Detect Support Eth Port Los LAN Support Port rate limiting Support Loop detection Support Flow control Support Storm control VLAN: Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(max 8 vlans Multicast Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 64 QoS Support 4 queues Support SP and WRR Support 802.1 P L3 Support Ipv4 Support DHCP/PPPOE/Static IP Support Static route Support NAT Management Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support WEB Support TELNET Support CLI Throughput Upstream >900Mbps Downstream >960Mbps Paquete perdido 14Hours /Lost 0
